MeetingBar A25 Microsoft Teams Rooms on Android
Small Space with Big View
All-in-one video bar for focus rooms
Designed for Simplicity
MeetingBar A25 is an all-in-one video bar designed for compact focus rooms, offering easy deployment and seamless use.
Built for Wide. Tuned for Clear.

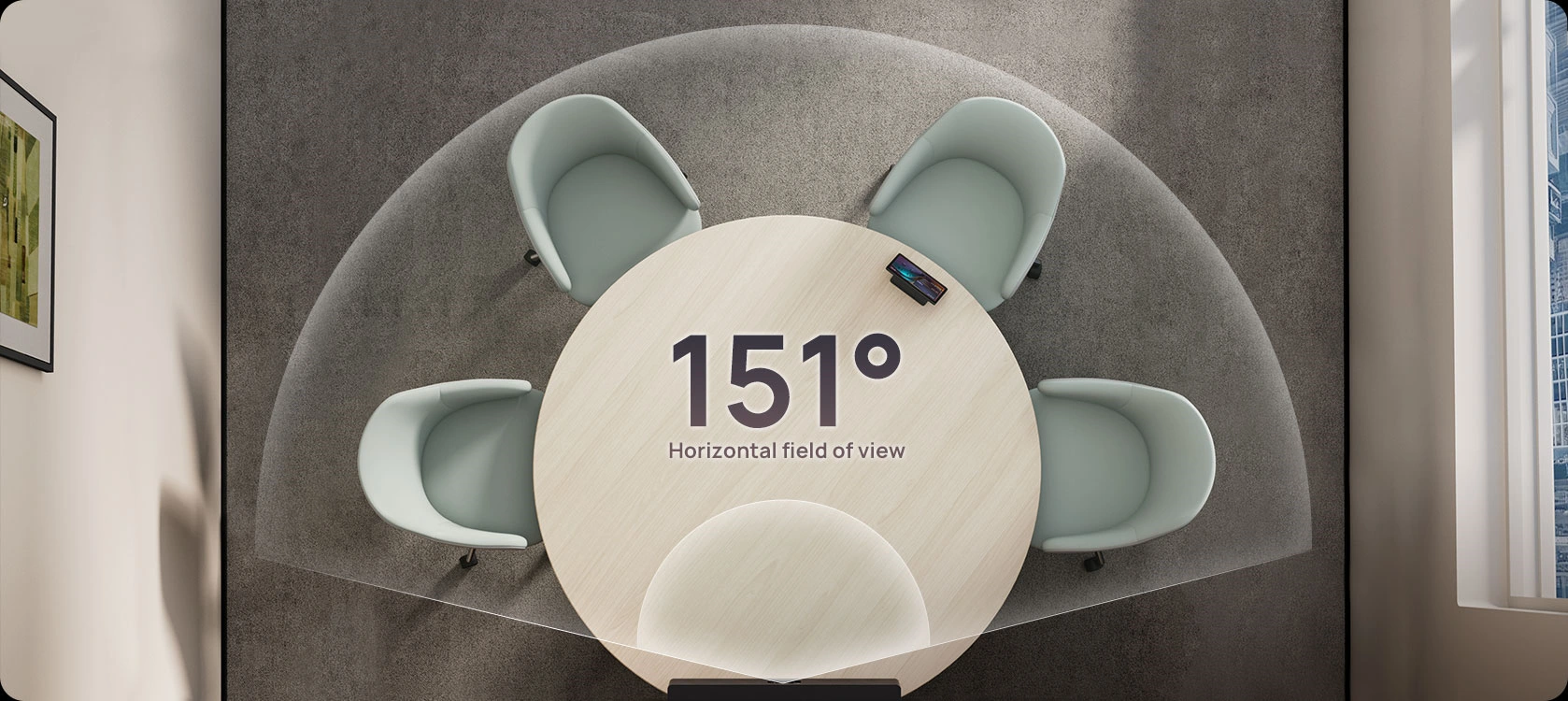

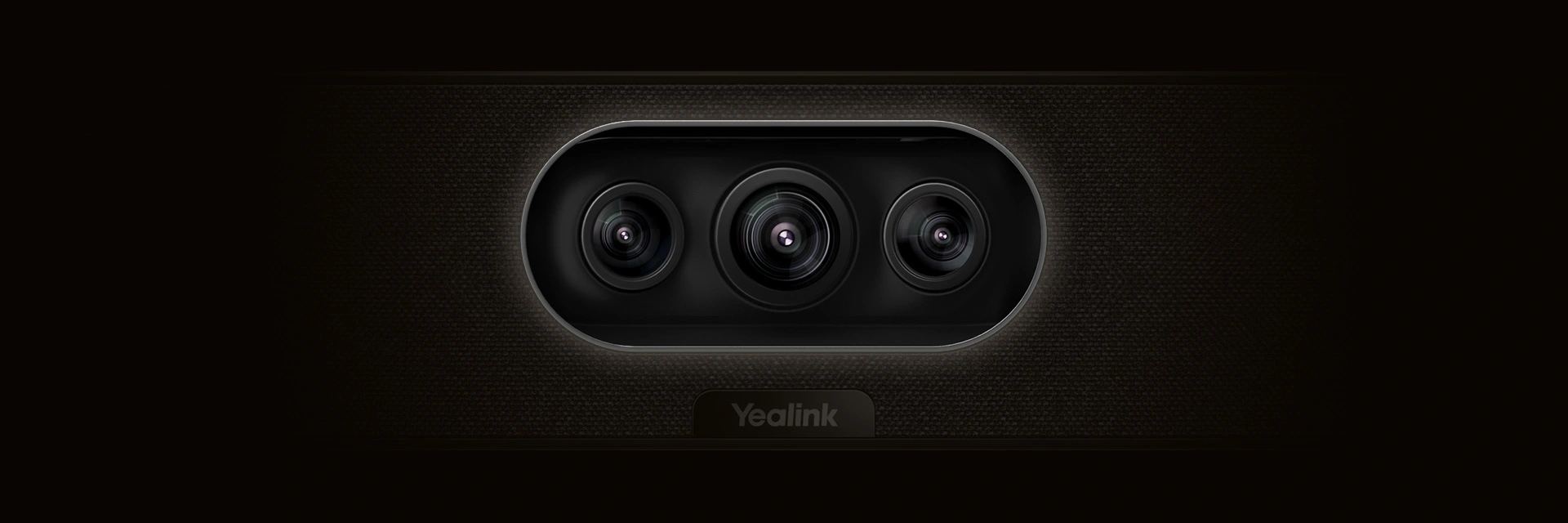

The MeetingBar A25 offers a precisely calculated 151° field of view, perfectly balancing ultra-wide coverage with clear image quality. Designed for real-world focus rooms with curved tables pushed against the walls, it uses one ultra-wide lens plus two telephoto lenses to maintain sharp, edge-to-edge visibility--capturing every participant clearly in tight spaces.

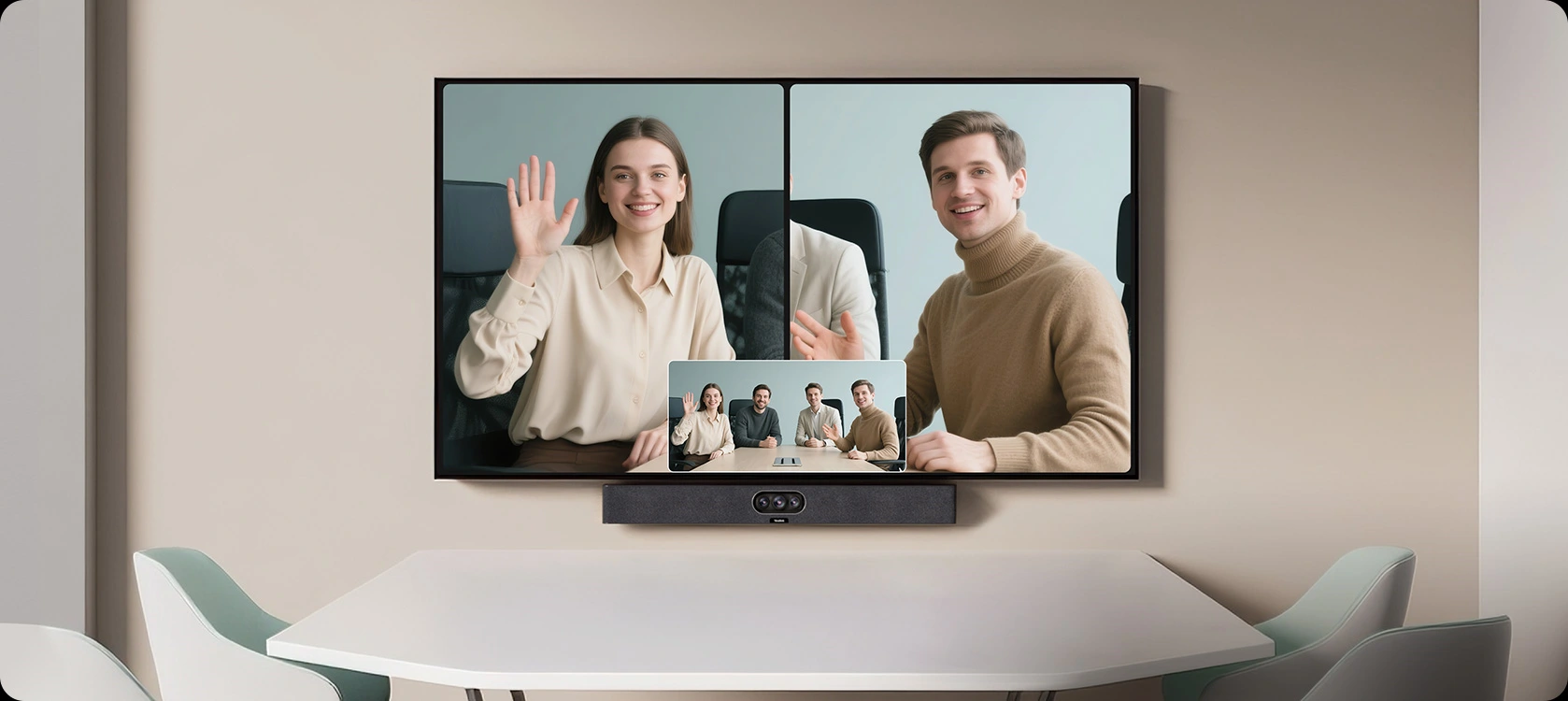

Be Impressive with AI-Powered View
The MeetingBar A25 ensures everyone is equally impressive and important in a virtual meeting.
Embrace a new level of meeting equity.

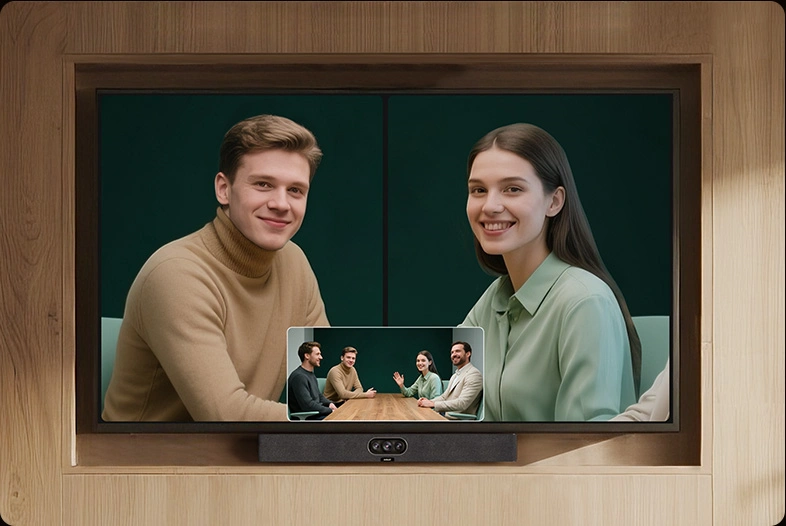

On-Device IntelliFocus
The on-device IntelliFocus feature displays real-time close-up shots of the recent speakers, enabling you to stay focused on what truly matters. Feel free to make your points just as you would in a face-to-face conversation.
Video Fence
The Video Fence feature marks the boundaries of a virtual meeting space. Your colleagues only see and hear what's inside, keeping the focus solely on your point.

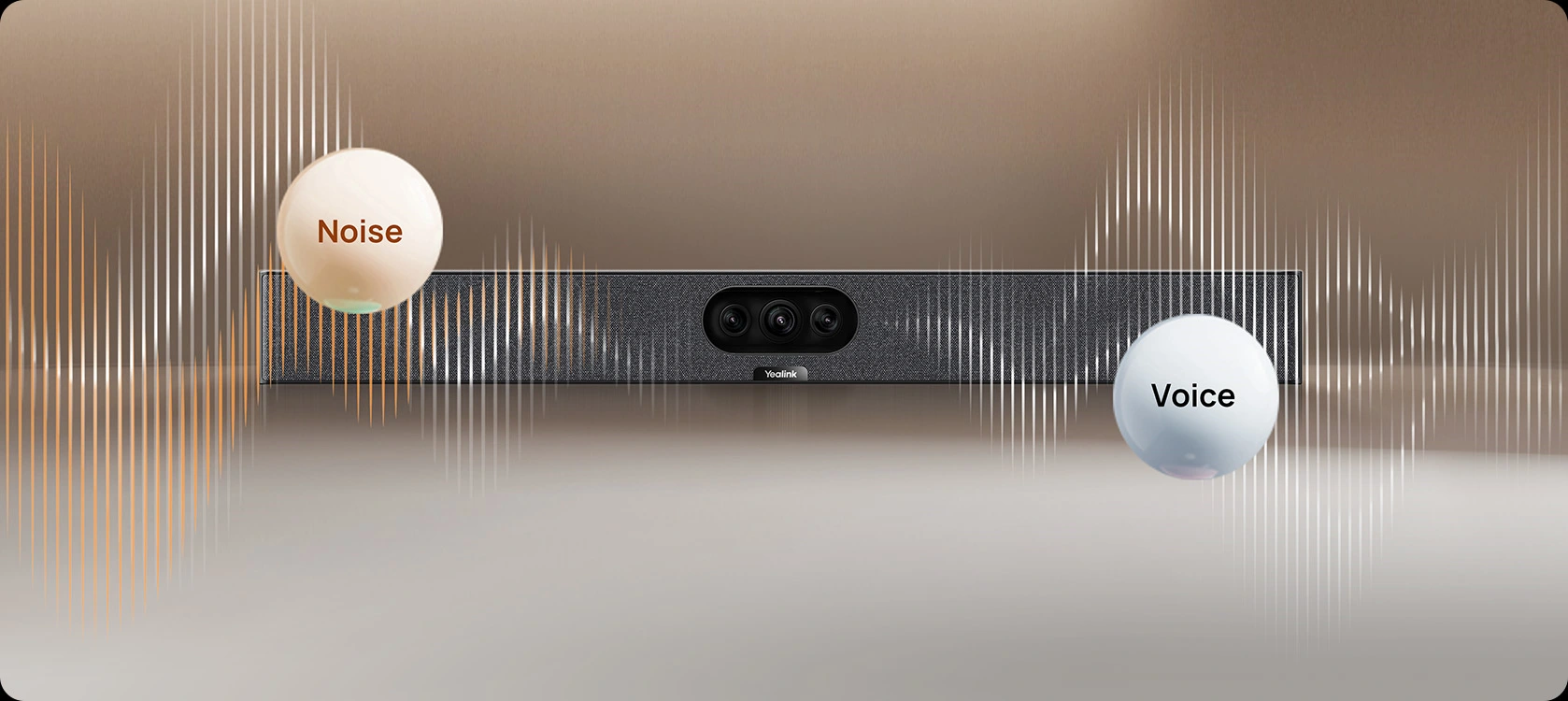

Hear and Be Heard with AI-Powered Audio
A25 ensures smooth communication with full-duplex audio, letting everyone speak and be heard at the same time without overlap. Its advanced AI-Enhanced Noise Cancellation filters out background sounds, delivering clear, natural voice quality in any space.

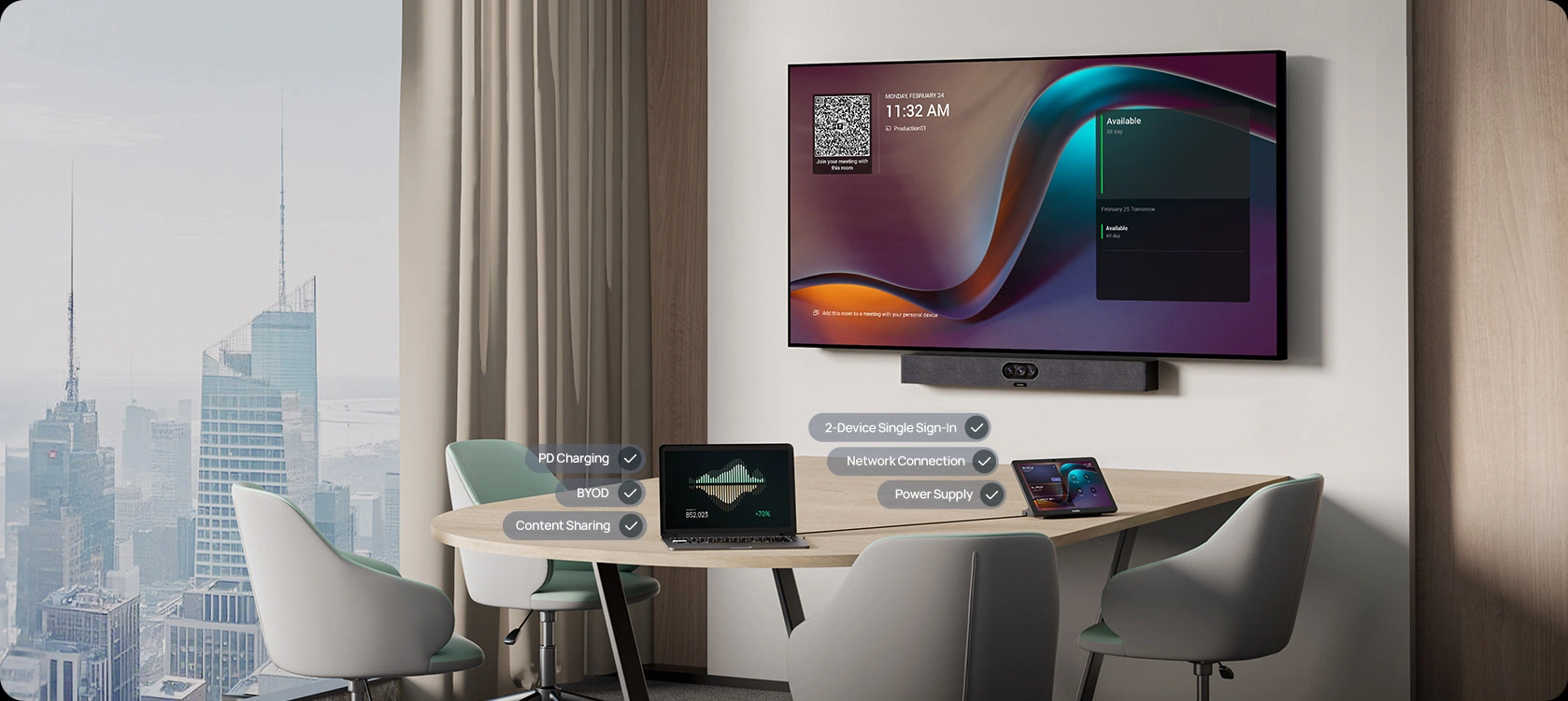

Simplify with One Plug
MeetingBar A25's One-Cable Solution simplifies deployment and sharing in 2 ways.
A single Cat5e cable from the bar to the touch console provides power and network connectivity to the touch console, eliminating extra cables. Signing in on the touch console synchronizes the entire system, removing the need to sign in on the touch console. Additionally, a single USB-C cable from the touch console to the PC enables 4K sharing, BYOD, and PD charging.
Flexibility Maximized
The touch console CTP25 can be mounted on the desk or wall, and it offers flexible connectivity options with direct connection to the bar or via IP.

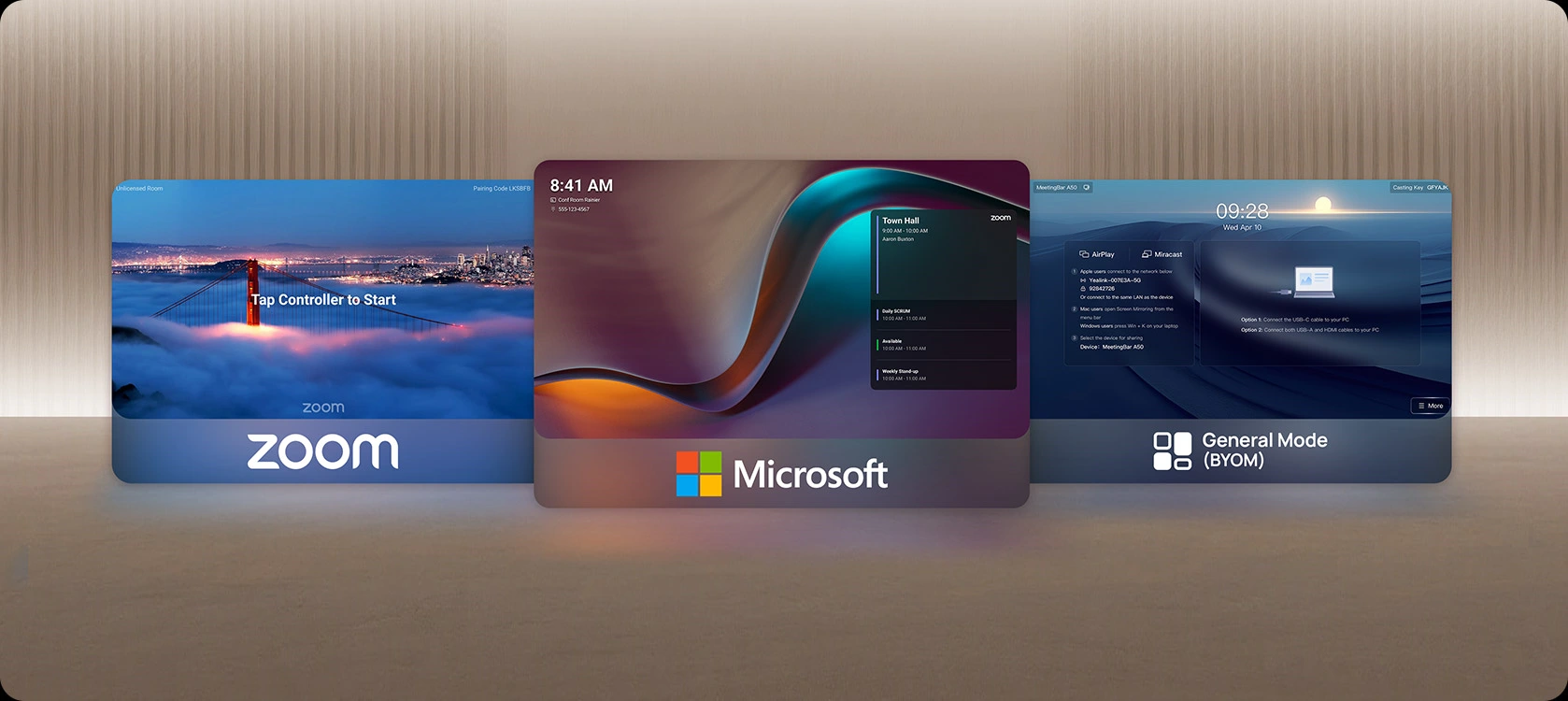

More Platforms
Compatible with Microsoft Teams Rooms, Zoom Rooms, and BYOD.
| Camera Features | Camera System | Triple 4K Camera System (3x 8MP Image Sensors) |
| Field of View | 151° HFOV (Horizontal), 81° VFOV (Vertical), 182° DFOV (Diagonal) | |
| Resolution & Frame Rate | Up to 4K (3840 x 2160) @ 30fps / 1080p @ 60fps | |
| Privacy Shutter | Built-in Electric Privacy Lens Cap (Auto open/close) | |
| Gimbal & Calibration | Electronic Gimbal, Auto Lens Calibration, 9 Preset Positions | |
| AI Intelligence Features | IntelliFocus (Multi-portrait framing), Video Fence, Auto Framing, Speaker Tracking, Picture-in-Picture | |
| Audio Features | Microphone Array | Built-in 8 MEMS Beamforming Microphone Array |
| Voice Pickup Range | Up to 5 meters (16.4 ft) with full-room coverage | |
| Speaker | Built-in high-fidelity 10W Speaker | |
| Audio Technologies | Full-Duplex audio, AI-Enhanced Noise Cancellation, Dereverberation, Acoustic Echo Cancellation (AEC) | |
| System & Platform | Operating System | Android 13 (Enterprise-grade security with Microsoft MDEP support) |
| Supported Platforms | Native Microsoft Teams Rooms on Android, Zoom Rooms, BYOD Mode | |
| Device Management | Microsoft Teams Admin Center (TAC), Yealink YMCS / PMP, Zoom Device Management | |
| Touch Console (CTP25) | Display | 10.1-inch IPS Touch Screen (1920 x 1200 Resolution, 16:10 Ratio) |
| Connectivity & Power | Single Cat5e Cable for Power over Ethernet (PoE) & Data directly from the A25 bar | |
| Mounting Options | Table mount (adjustable angle) and Wall mount | |
| Physical Interfaces | Video Outputs & Inputs | 1x HDMI Output (CEC supported), 1x HDMI Input / USB-C (via CTP25) |
| Network Connectivity | 1x 10/100/1000M Ethernet port (RJ45), Built-in Wi-Fi & Bluetooth | |
| USB & Expansion Ports | 2x USB-A 2.0, 1x VCH port (RJ45) for CTP25 Touch Console | |
| Power Supply | DC 48V / 2A External Power Adapter | |
| Package Contents | • Yealink MeetingBar A25 Endpoint • CTP25 Touch Console (with 7.5m Cat5e cable) • Wall Mount Bracket & Accessories • 1.8m HDMI Cable • Power Adapter & Quick Start Guide |
|
