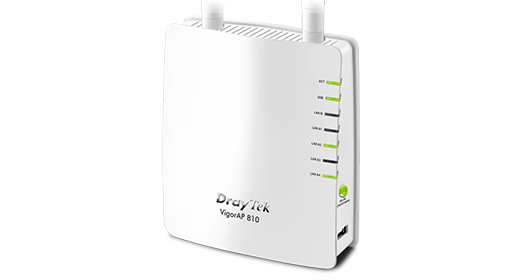

VigorAP 810
802.11n Wireless AP + 5-Port Switch
VigorAP 810 is an 11n wireless access point/5-port LAN switch, one of the LAN port supports PoE. VigorAP 810 is compliant with the 802.11n standard, delivers wireless speed up to 300 Mbps. The AP can work in different operating modes, including access point, universal repeater, and wireless bridge.
N300
Delivers 300 Mbps at 2.4GHz
64 Users
At Maximum
5 LAN Port
105x 10/100 Base-T RJ-45
4 SSIDs
802.1q VLAN support
KEY FEATURES
2
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience.1
AirTime Fairness
Equalize the transmission time of each client so the legacy devices won't slow everyone down.3
Local RADIUS Server
User profile database for local and external 802.1x authentication.4
Central AP Management
Manage, maintain, and monitor VigorAP 810 from the DrayTek router|
Interface
|
|
|
LAN Port
|
5x 10/100 Base-TX LAN Switch, RJ-45 (including 1x PoE)
|
|
USB Port
|
1x USB 2.0
|
|
Antenna
|
2x SMA Detachable
Gain: 2 dBi
|
|
Button
|
1x Factory Reset
1x Wireless On/Off/WPS
1x Power On/Off
|
|
Capacity
|
|
|
Peak Speed
|
300 Mbps
|
|
Max. Number of Connective Clients
|
64
|
|
WLAN
|
|
|
2.4GHz Standard
|
IEEE 802.11b/g/n
|
|
MIMO
|
2x2 MIMO
|
|
Operating Mode
|
AP, Universal Repeater, Bridge
|
|
Fast Roaming (WPA2/802.1x)
|
Yes
|
|
AP-Assisted Roaming
|
Yes
|
|
AirTime Fairness
|
Yes
|
|
Max. Number of SSID
|
4
|
|
Authentication
|
Pre-Shared Key, 802.1x
|
|
WPS
|
Yes
|
|
Client Isolation
|
Yes
|
|
Access Control List
|
Yes
|
|
Bandwidth Limit per Client
|
Yes
|
|
Client Numer Limit
|
Per radio, Per SSID
|
|
Connection Time Control
|
Yes
|
|
Mobile Device Management
|
Yes
|
|
WMM
|
Yes
|
|
Application
|
|
|
Built-in RADIUS Server
|
Yes
|
|
RADIUS Proxy
|
PEAP, EAP-TLS
|
|
DHCP
|
DHCP Server, DHCP, Client, DHCP Relay Agent
|
|
Static IP
|
Yes
|
|
MAC Clone
|
Yes
|
|
802.1q VLAN
|
Yes
|
|
Schedule
|
Auto-Reboot, Wi-Fi Up/Down, LED On/Off
|
|
Management
|
|
|
Local Service
|
HTTP, HTTPS, Telnet
|
|
Configuration
|
Stand Alone, TR-069 (VigorACS), Vigor Router APM
|
|
Tools
|
Speed Test, AP Discovery, Statistics
|
|
Syslog
|
|
|
SNMP
|
v2, v2c, v3
|
|
Managed by VigorACS
|
Yes
|
|
Physical
|
|
|
Environment
|
Indoor
|
|
Mounting
|
Wall Mount, Desktop
|
|
Power Method
|
DC, 802.3at PoE
|
|
Max. Power Consumption
|
10 watts
|
|
Dimension
|
112mm x 132mm x 43mm
|
|
Operating Temperature
|
0 to 45°C
|
|
Storage Temperature
|
-20 to 70°C
|
|
Operating Humidity
|
10 to 90% non-condensing
|
|
Certificate
|
 |
