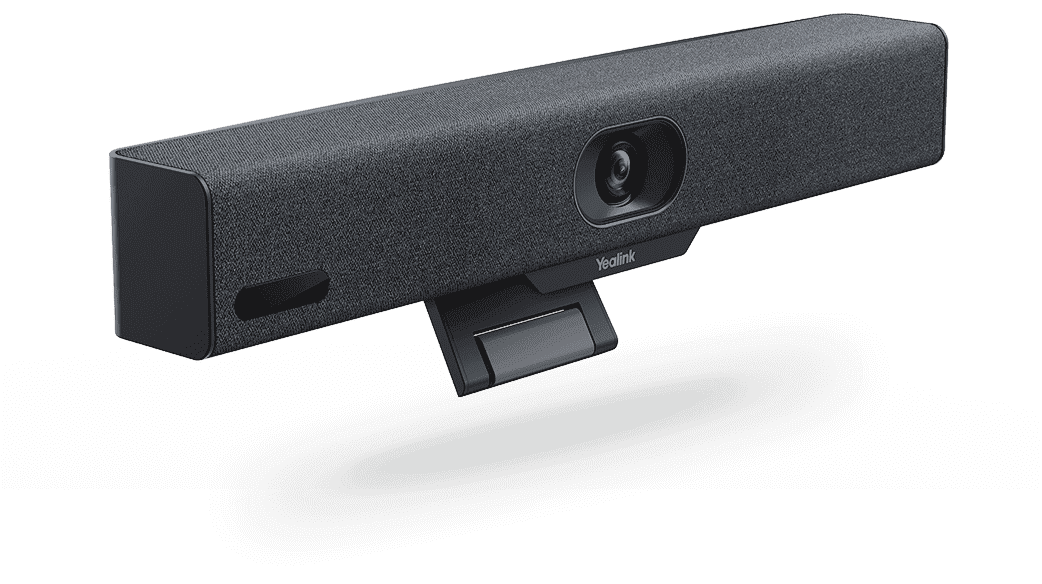

MeetingBar A10 Microsoft Teams Rooms on Android
MeetingBar A10
Pro Meetings in a Simple Way — All-in-one video bar for huddle rooms
SIMPLE TO MAKE ROOM RIGHT
The MeetingBar A10's compact design makes it perfect for small spaces and home offices, and it can be set up in minutes. A10 combines a computing unit, camera, microphones, speaker, adjustable TV Clamp, Wi-Fi, and Bluetooth, providing a simple deployment solution.
PRO VIEW
A REAL LOOK INTO THE MEETING ROOM
With 4K camera and 120° field of view, capture all important details in the room clearly with great color.
01 Auto Framing
Auto Framing recognizes the number and the positions of attendees, framing everyone smoothly in the most appropriate view even in small spaces.
02 Speaker Tracking
Speaker Tracking focuses on the speaker's face in real-time, framing it in a close-up shot to create a vivid face-to-face meeting experience that engages attendees.
PRO VOICE — FEEL FREE TO TALK
The built-in 8 MEMS beamforming microphones and speakers in MeetingBar A10 provide full coverage of small spaces for a worry free, full-duplex voice experience.
GETS HEARD CLEARLY
Yealink's enhanced AI noise cancellation enhances the audio experience, leveraging a massive deep-learning sound database to reduce background noises, distracting keyboard clatter, mouse clicks, and footsteps, as well as smartly erase other ambient noises to provide crystal-clear audio quality.
BIG CONVENIENCE WITH A SMALL POD
MeetingBar A10 creates a plug-and-share experience with the WPP30 presentation pod. Plug the WPP30 into your laptop to share content wirelessly without configuring anything.
EITHER WAY, THE SIMPLE WAY

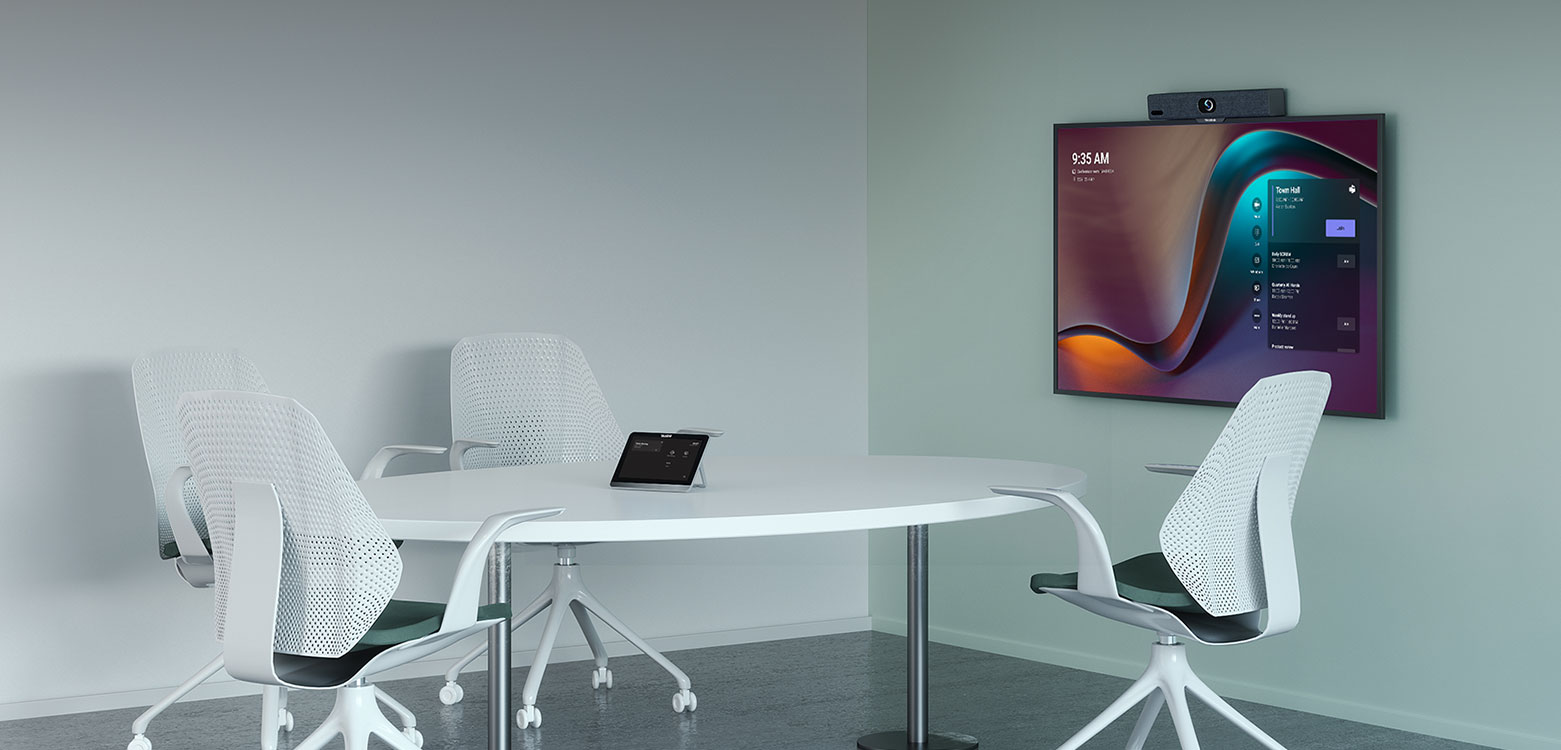

No matter you are using Microsoft Teams or not, MeetingBar A10 makes meetings simple. The upgrade from Device Mode to Teams is seamless!
| Camera Specifications | Camera System | 4K Camera (Resolution: Up to 1080p@30fps, 720p@30fps) |
| Field of View | 120° DFoV (Diagonal), 105° HFoV (Horizontal) | |
| Zoom | 4x e-PTZ digital camera | |
| Privacy Protection | Built-in Electric Privacy Shutter (Auto open/close) | |
| Intelligence Features | Auto Framing, Speaker Tracking, Smart Gallery (Zoom) | |
| Mounting Mechanism | Integrated Adjustable TV Clamp / Monitor Mount | |
| Audio Specifications | Microphone Array | Built-in 8 MEMS beamforming microphone array |
| Pickup Range | 4.5-meter voice pickup distance (3.5-meter high-quality pickup distance) | |
| Speaker | Built-in 5W High-Fidelity speaker | |
| Audio Technologies | Yealink AI-based noise-proof technology, Full-duplex audio, Acoustic Echo Cancellation (AEC) | |
| System & Platform | Operating System | Android OS (All-in-one embedded computing unit) |
| Operating Modes | Native Mode (Microsoft Teams Rooms on Android) & Device Mode (BYOD USB Peripheral) | |
| Wireless Connectivity | Built-in Wi-Fi and Bluetooth | |

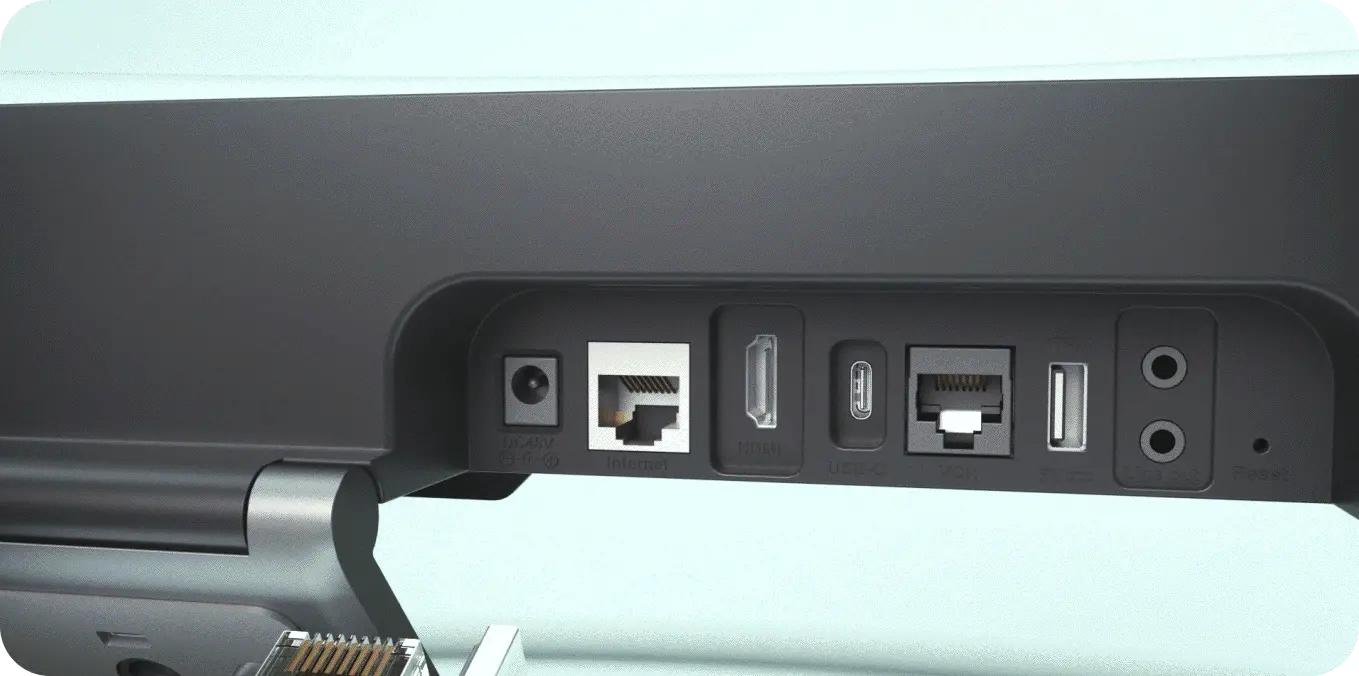

| Physical Interfaces | Video Output | 1x HDMI-out with CEC support |

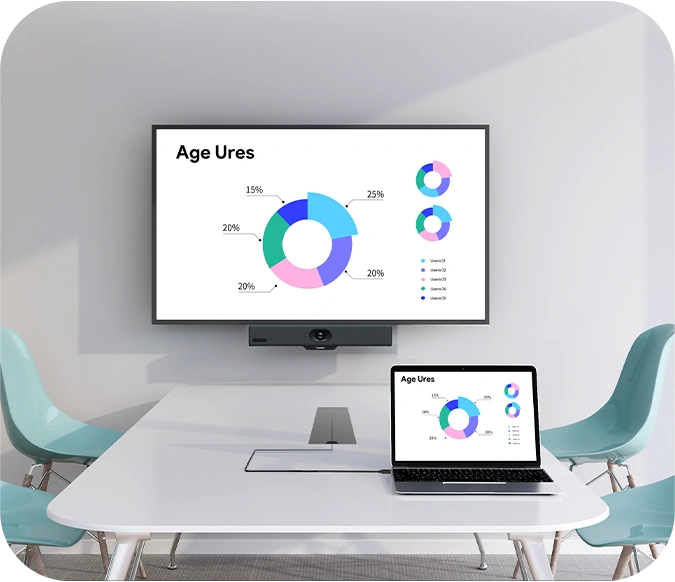

| USB & Console | 1x USB 2.0 (Type-A), 1x USB-C (for PC BYOD mode), 1x RJ45 VCH port (for touch console) | |
| Network & Power | 1x 10/100M RJ45 Ethernet port, 1x DC 48V power port | |
| Audio Ports | 1x 3.5mm Line-in, 1x 3.5mm Line-out | |
| Deployment & Sizing | Recommended Room Size | Home Office, Phone Rooms, and Huddle Rooms (1–5 people) |
| Content Sharing | Supports WPP30 wireless presentation pod & wired USB-C content sharing |
