UVC40 E2
UVC40 E2
All-in-One USB Video Bar for Small and Huddle Rooms
Smarter Meetings, One Device: All-in-One, Plug-and-Play

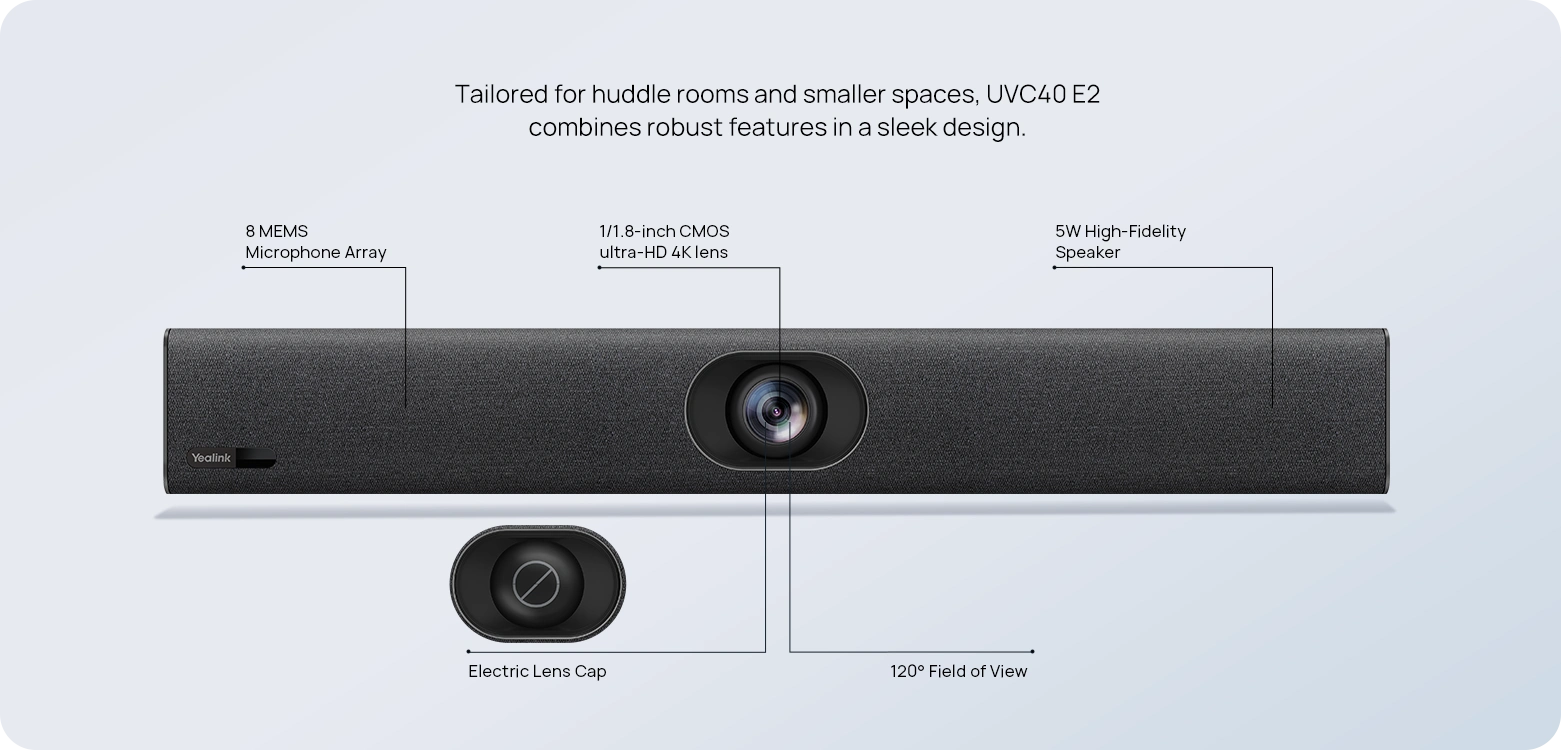

With 4K ultra-HD imaging, a 120° super-wide-angle lens, and Smart Area Exposure technology, the UVC40 E2 ensures exceptional video quality. Its compact all-in-one form factor integrates camera, microphones, and speaker into a single USB device.
Smart AI, Clear Focus
Auto Framing
Auto Framing detects attendees and adjusts automatically as more join, eliminating manual setup and keeping everyone centered.
Speaker Tracking
Speaker Tracking and Sound Localization provide real-time speaker close-ups for engaging face-to-face meetings.
Smart Sound, Superior Clarity

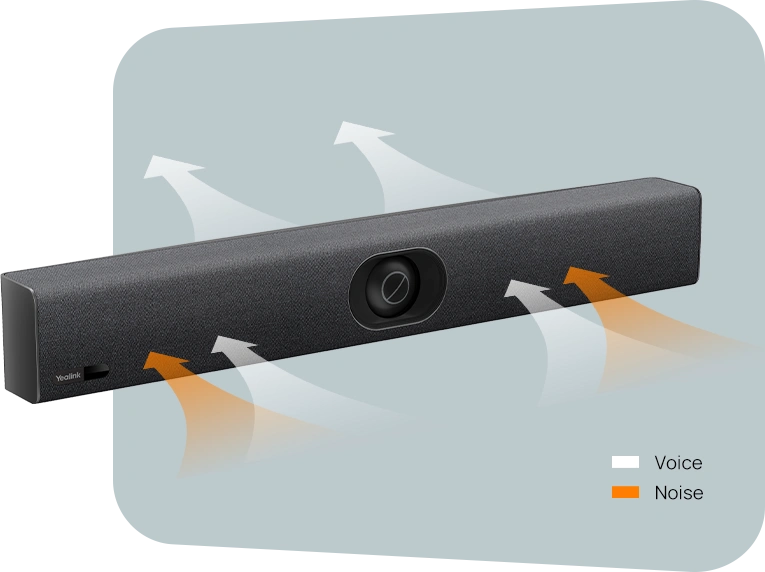

Built-in 8 MEMS microphone arrays with Yealink AI Noise Proof technology ensure superior noise reduction and acoustic echo cancellation, paired with a high-fidelity 5W speaker for rich voice reproduction.
| Camera System | Camera Sensor | 4K Ultra-HD Camera Sensor with Sony 1-inch CMOS |
| Field of View | 120° Super-Wide-Angle Diagonal FOV, 133° DFOV | |
| Digital Zoom & Presets | Up to 8x e-PTZ Digital Zoom, 9 Camera Presets | |
| Privacy Shutter | Electric Privacy Lens Cap (Auto opens upon video start) | |
| AI Features | Auto Framing, Speaker Tracking, Sound Localization, Smart Area Exposure | |
| Audio System | Microphone Array | Built-in 8 MEMS Beamforming Microphone Array |
| Voice Pickup Range | Up to 6 meters (20 ft) Voice Pickup Range | |
| Speaker | Built-in 5W High-Fidelity Speaker | |
| Audio Technologies | Yealink Noise Proof Technology, Dereverberation, Full-Duplex Audio, Acoustic Echo Cancellation (AEC) | |

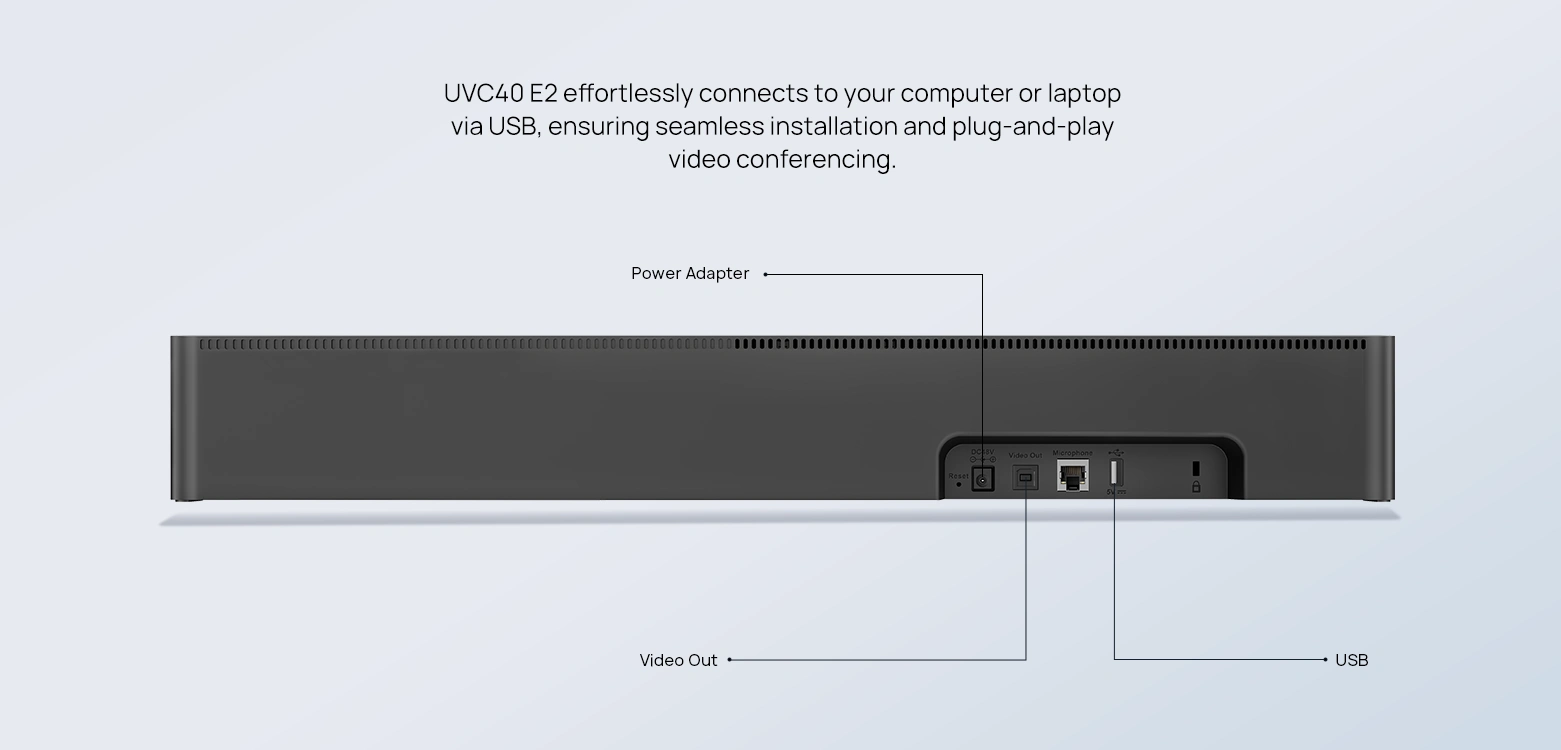

| Connectivity & Physical | Physical Ports | 1x USB 3.0 Type-B, 1x USB 2.0 Type-A, 1x Yealink Microphone Port (RJ-45), 1x 3.5mm Line-in, Power Port |
| Wireless & Management | Built-in Wi-Fi & Bluetooth, Remote Management via Yealink USB Connect / YMCS | |
| Package Contents | UVC40 E2 Video Bar, VCR20 Remote Control, Power Adapter, Wall Mount Bracket, 2.5m USB Cable |
