MVC S50 Microsoft Teams Rooms on Windows
MVC S50
Microsoft Teams Rooms System for Medium to Large Rooms
The Yealink MVC S50 is designed for medium to large-sized meeting rooms, delivering an all-in-one smart video conferencing solution. The system includes the high-performance MCore 4 AI PC powered by Intel Core Ultra 5 with integrated NPU, the MTouch Plus 11.6-inch touch console, and the MeetingBar A50 smart audio and video bar equipped with a triple 50MP camera system and 16 MEMS microphone array, providing an immersive hybrid collaboration experience.

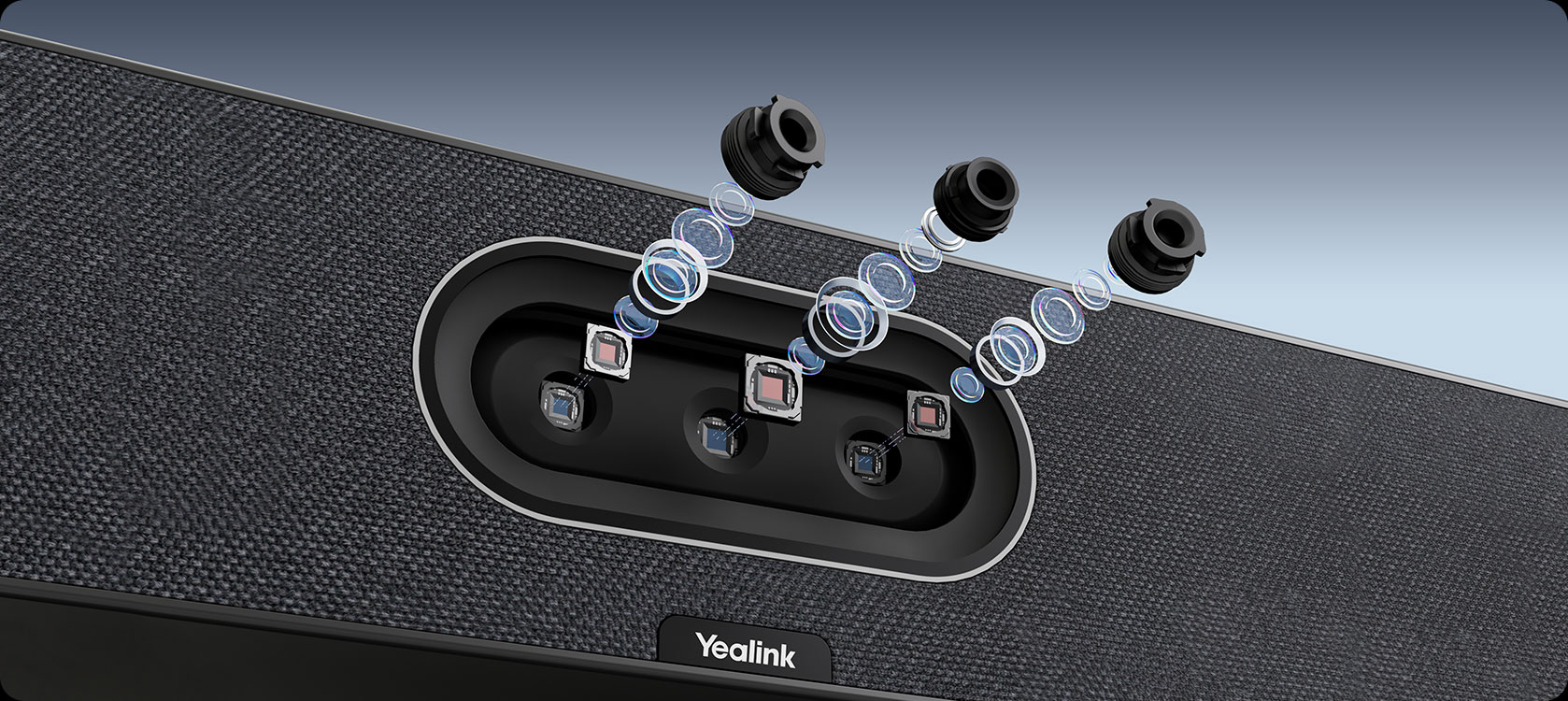

Three Cameras. See It All.
MeetingBar A50's triple 50MP camera system combines a wide-angle lens and two telephoto lenses to capture every voice, face, and detail—even in larger spaces. And when the meeting ends, a physical shutter closes automatically to protect your privacy.

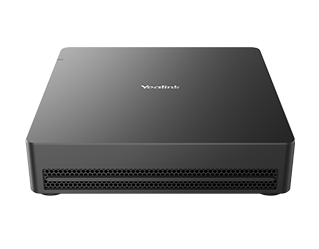

Future-Ready AI Power
Empowered by Intel Core Ultra 5 and an integrated NPU delivering up to 34 TOPS AI processing, MCores4 is future-ready to unlock advanced AI-driven collaboration experiences. Purpose-built for smarter meetings, it features a built-in EDID module , CEC support , and seamless IP-based integration with touch consoles, ensuring streamlined deployment and control. With AVLAN and Internet separation by design, MCores4 upholds enterprise-grade security while enabling high-performance, intelligent meeting spaces. Enjoy frictionless deployment, easier configuration, more smooth and premium meeting experience.
Engineered for Power
The MeetingBar A50 elevates video conferencing with Qualcomm's 8550 processor, delivering 50% more CPU performance and over 10 times the AI processing power. This innovation ensures seamless audio and video experiences in medium to large meeting rooms, enabling intelligent collaboration and crystal-clear communication.
On-Device IntelliFocus
The on-device IntelliFocus feature displays real-time close-up shots of the recent speakers, enabling you to stay focused on what truly matters. Feel free to make your points just as you would in a face-to-face conversation.
Video Fence
The Video Fence feature marks the boundaries of a virtual meeting space. Your colleagues only see and hear what's inside, keeping the focus solely on your point.
Voice Enhanced with AI-Powered Audio

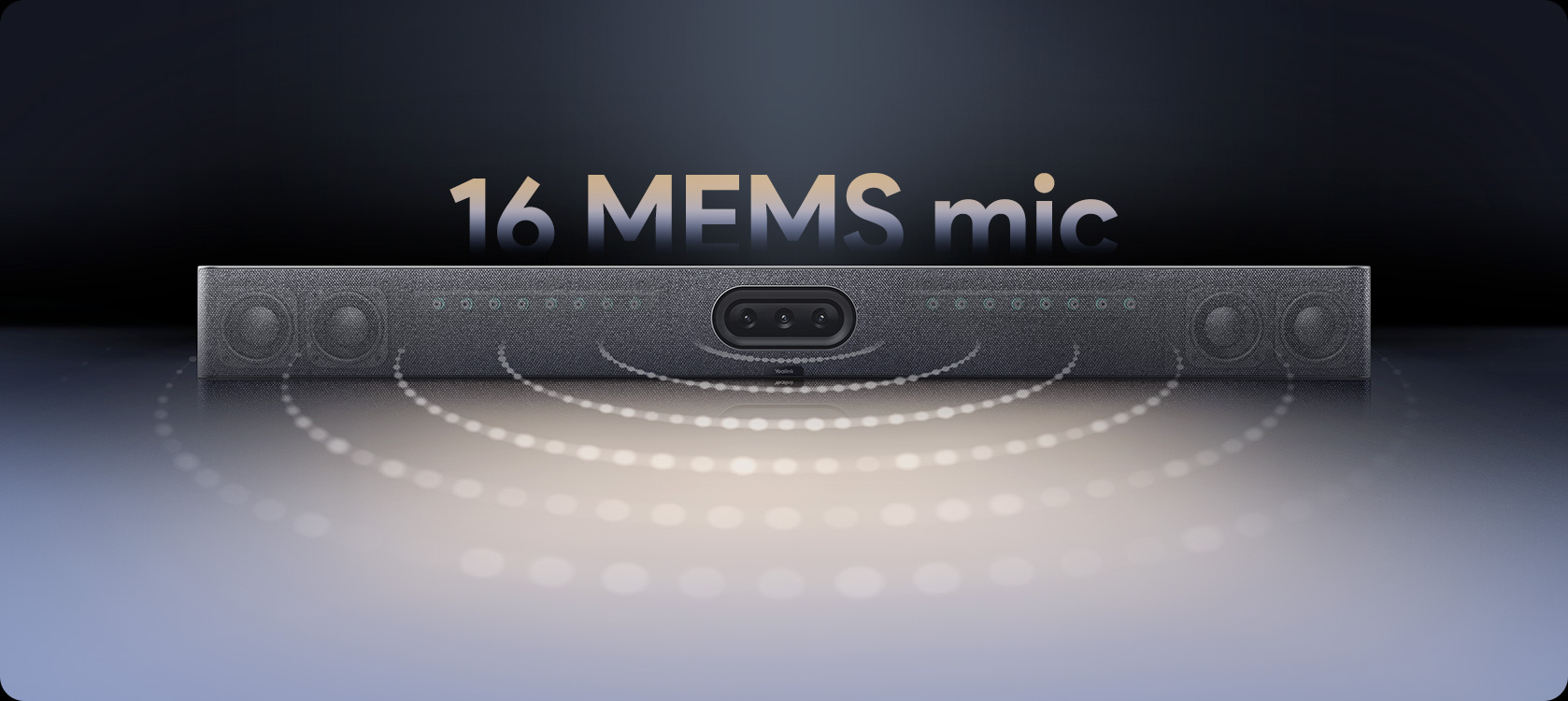

The A50 delivers full-duplex audio powered by AI-enhanced noise cancellation and reverberation suppression, so voices come through naturally—without distractions. With a pickup range of up to 10 meters and support for extension mics and ceiling mics, it’s built to adapt to any room and every conversation.

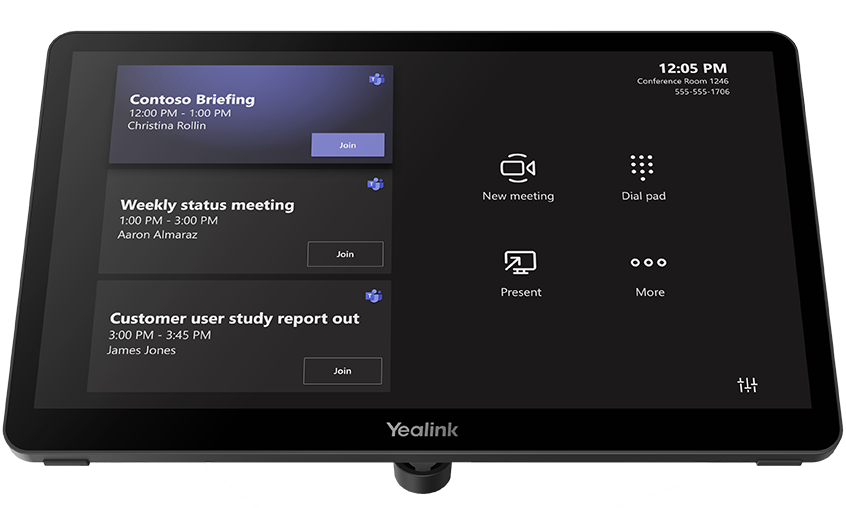

Control Freely
The MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room , whether on the wall or table for flexible collaboration needs.

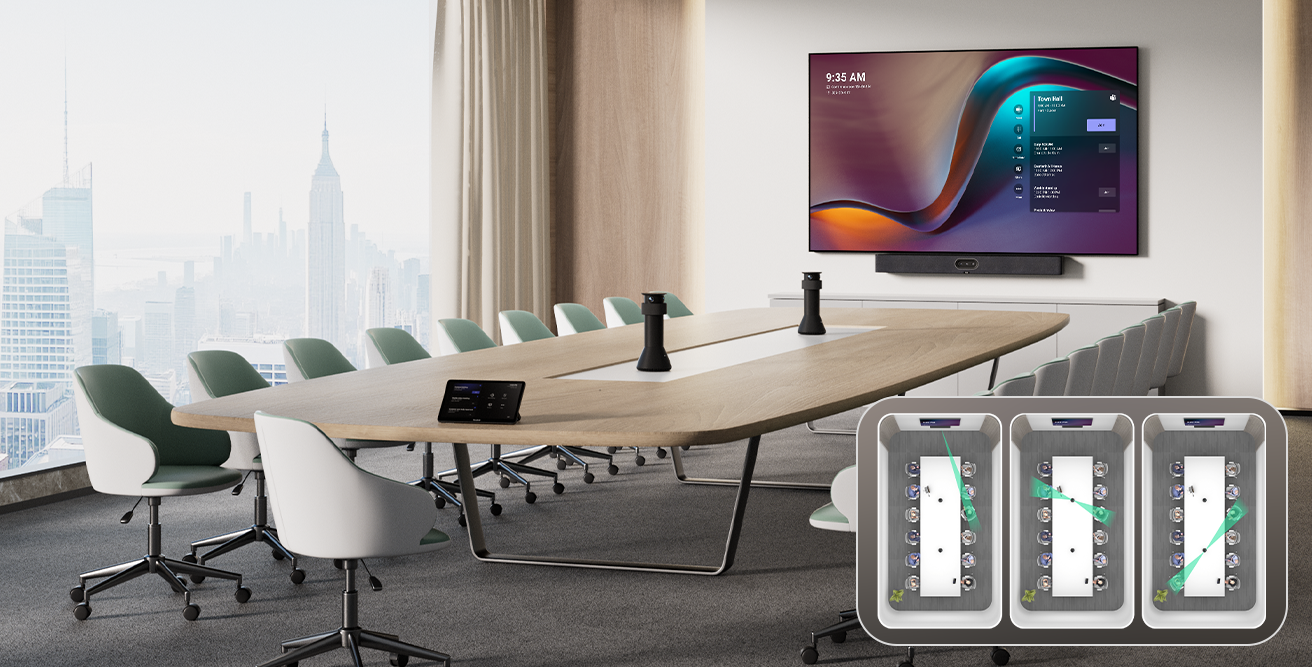

Dual MTower, Broader Perspectives
Compatible with MVC S50, Dual MTower brings more natural front-facing view, AI-powered auto-switching, and extended audio and video coverage into larger meeting spaces.
Standard Room Layout Diagrams
Explore 3D models, wiring diagrams, and seating layouts to visualize and implement the optimal standard setup for your conference rooms.

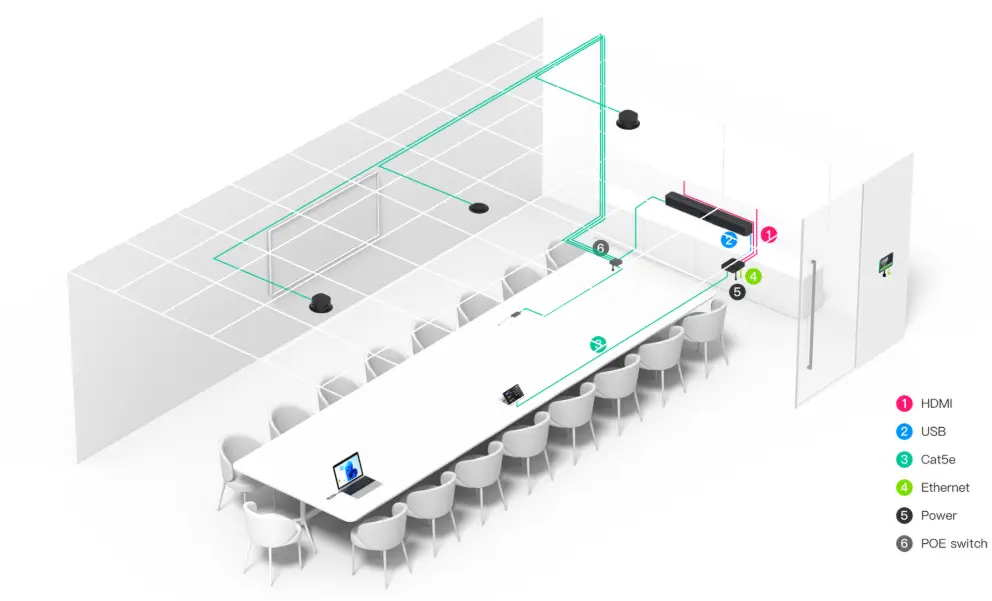

Large Rooms with Ceiling Audio

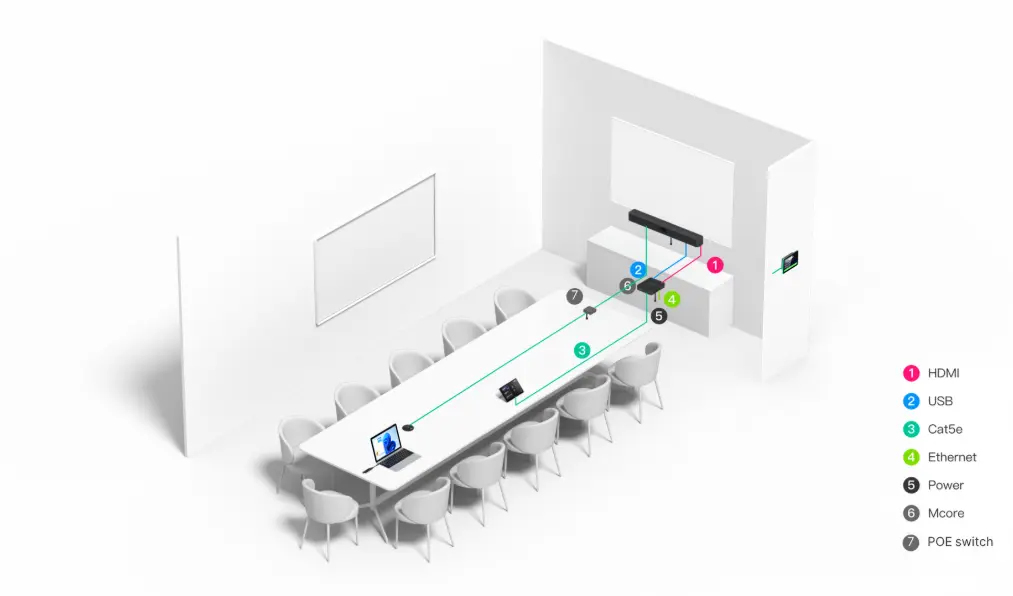

Medium Rooms with Tabletop Mic

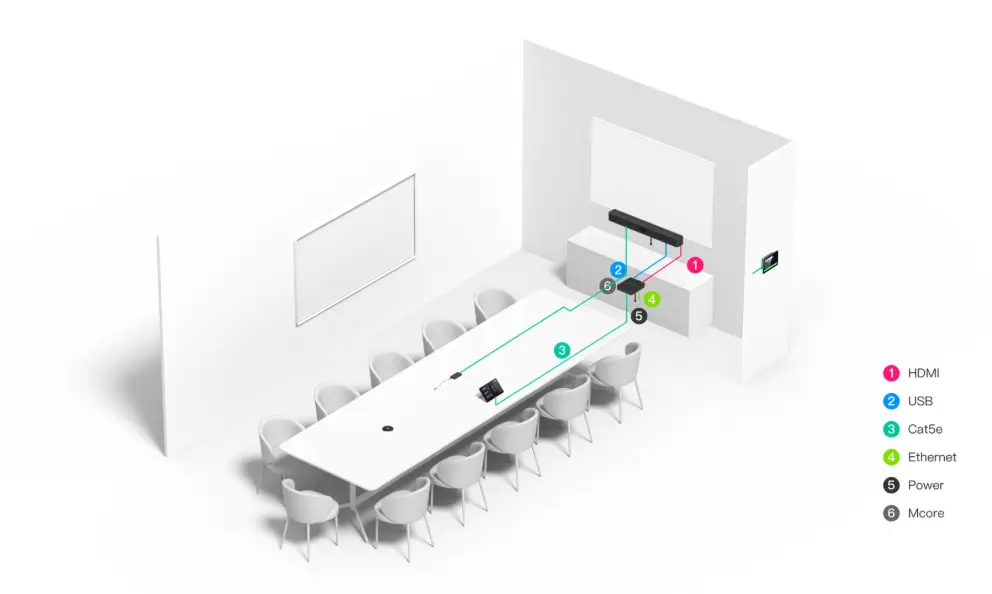

Medium Rooms with Wireless Mic
| MeetingBar A50 (USB Mode) All-in-One Video Bar | Camera System | Industry-leading triple-eye Camera System, 3x 50MP |
| Angle of View | 1x Wide: HFOV 98°, VFOV 81° ; 2x Tele: HFOV 41.6°, VFOV 31.8° | |
| Processor & Computing Power | Qualcomm QCS8550 inside, 48 TOPS Computing Power | |
| Audio System | Built-in 16 MEMS microphone array, built-in 4 x 5W stereo speakers, 10m pickup range | |
| Camera AI Features | IntelliFocus, Speaker Tracking, Video Fence, People Counting, Picture in Picture, Auto Framing | |
| Privacy Protection | Electric lens cap (automatic physical privacy shutter) | |
| MCore 4 AI PC | Processor & NPU | Intel Core Ultra 5, Built-in NPU, 34 TOPS Computing Power |
| Memory & Storage | 16GB (2*8GB) DDR5 RAM, 256GB SSD | |
| Display Output & EDID | 3x HDMI video output with CEC supported, Built-in EDID module | |
| Content Input | HDMI-in for 4K content sharing | |
| Connectivity & Touch Console | IP connection with Touch console, 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2 | |
| USB & Peripherals | 4 x USB 3.0 Type-A ports | |
| Network & Security | Gigabit Ethernet with AVLAN and Internet separation by design, Bluetooth and Wi-Fi | |
| MTouch Plus Touch Console | Display | 11.6-inch narrow bezel IPS display, 1080P (1920 x 1080) resolution |
| Viewing Angle | Angle between screen and desktop adjustable (30°~70°) | |
| Content Sharing | Support wired and wireless (with WPP30) content sharing | |
| Video Input | Support HDMI and USB-C video input | |
| Deployment Options | Support desktop placement, desktop fixed, wall-mounted deployment; support multiple touch panels per room | |
| RoomSensor | Detection Capabilities | Occupancy, Temperature, Humidity, Light |
| Protocol & Frequency | Bluetooth BLE 5.2, 2.4 GHz frequency band | |
| Wireless Reach | 30 m (100 ft) | |
| Multi-Connectivity | Maximum 4 simultaneously, BLE mesh | |
| System & Deployment | Operating System & Platform | Windows 11 IoT Enterprise with native Microsoft Teams Rooms |
| Recommended Room Size | Medium to Large Rooms (6–12 People, expandable up to 15+ with extension mics / Dual MTower) | |
| Device Management | Microsoft Teams Admin Center (TAC), MTR Pro Management Portal (PMP), Yealink Device Management Platform / YMCS |
