UVC85-BYOD
UVC85-BYOD
Customized Video Conferencing Solution for Medium and Large Meeting Rooms
BYOD: Your Device, Our Professional Experience
The UVC85-BYOD kit offers premium video and audio conferencing for medium to large spaces. Combining a high-performance 4K PTZ camera, omnidirectional audio, and single-cable BYOD connectivity.
4K Ultra HD Camera: Capture Every Detail of Your Meetings
The UVC85 camera delivers 4K ultra-HD video with optical clarity, smooth mechanical PTZ, and powerful zoom, ensuring every participant in medium and large meeting spaces is captured in vivid sharpness.
Professional-Grade Audio: Immersive Sound, Effective Meetings

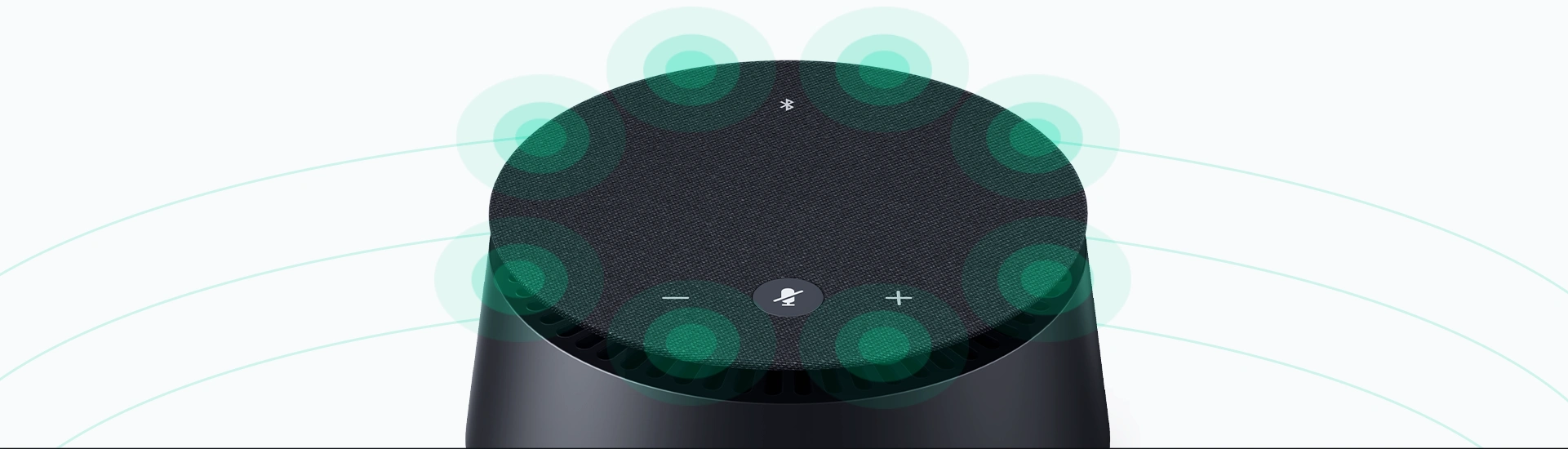

Featuring an 8-element omnidirectional microphone array and powerful full-range speakers, the system captures 360° voice pickup with full-duplex clarity and AI noise reduction across larger tables.
Easy Deployment to Meet All Audio Needs
Connect your computer to the CP50 via a single network cable for wired BYOD or screen sharing, enabling efficient meetings. The CP50 also supports desktop daisy-chaining, allowing up to 7 CPE40 units to be connected via a single POE network cable.
| Camera System | Camera Type | UVC85 4K Ultra-HD Mechanical PTZ Camera |
| Resolution & Frame Rate | 4K @ 30fps / 1080p @ 60fps Ultra-HD Video | |
| Optical & Digital Zoom | 12x Optical Zoom + 3x Digital Zoom (Total 36x Hybrid Zoom) | |
| Field of View & PTZ Range | 90° Diagonal FOV, 80° Horizontal FOV, Pan: ±100°, Tilt: +40° to -90° | |
| AI Framing | Auto Framing, Speaker Tracking, Presenter Tracking | |
| Audio System | Microphone Unit | CP50 / VCM35 Omnidirectional Microphone Units (8-element beamforming array) |
| Voice Pickup Range | 6-meter 360° voice pickup, expandable with daisy-chained expansion mics | |
| Daisy-Chaining | Supports up to 7 CPE40 expansion units via single PoE cable | |
| Audio Technologies | Yealink AI Noise Cancellation, Full-Duplex Sound, Acoustic Echo Cancellation (AEC) | |
| Connectivity & BYOD | BYOD Box / Interface | BYOD-Extender / CP50 with USB-C and HDMI connection to host laptops |
| Cable Architecture | Single Cat5e/Cat6 cable connection between table console and display area | |
| Compatibility | Universal compatibility with Microsoft Teams, Zoom, Webex, Google Meet |
