UVC86
UVC86
Dual-Eye 4K Intelligent PTZ Camera for Medium and Large Rooms
Designed For Medium & Large Rooms: Dual 4K Camera System
The UVC86 is a built-in dual-eye 4K camera system with a panoramic camera to detect participants in real-time and a 4K PTZ camera with 12x optical zoom to capture the best image of everyone in the room.
AI-Powered View & Flexible Installation

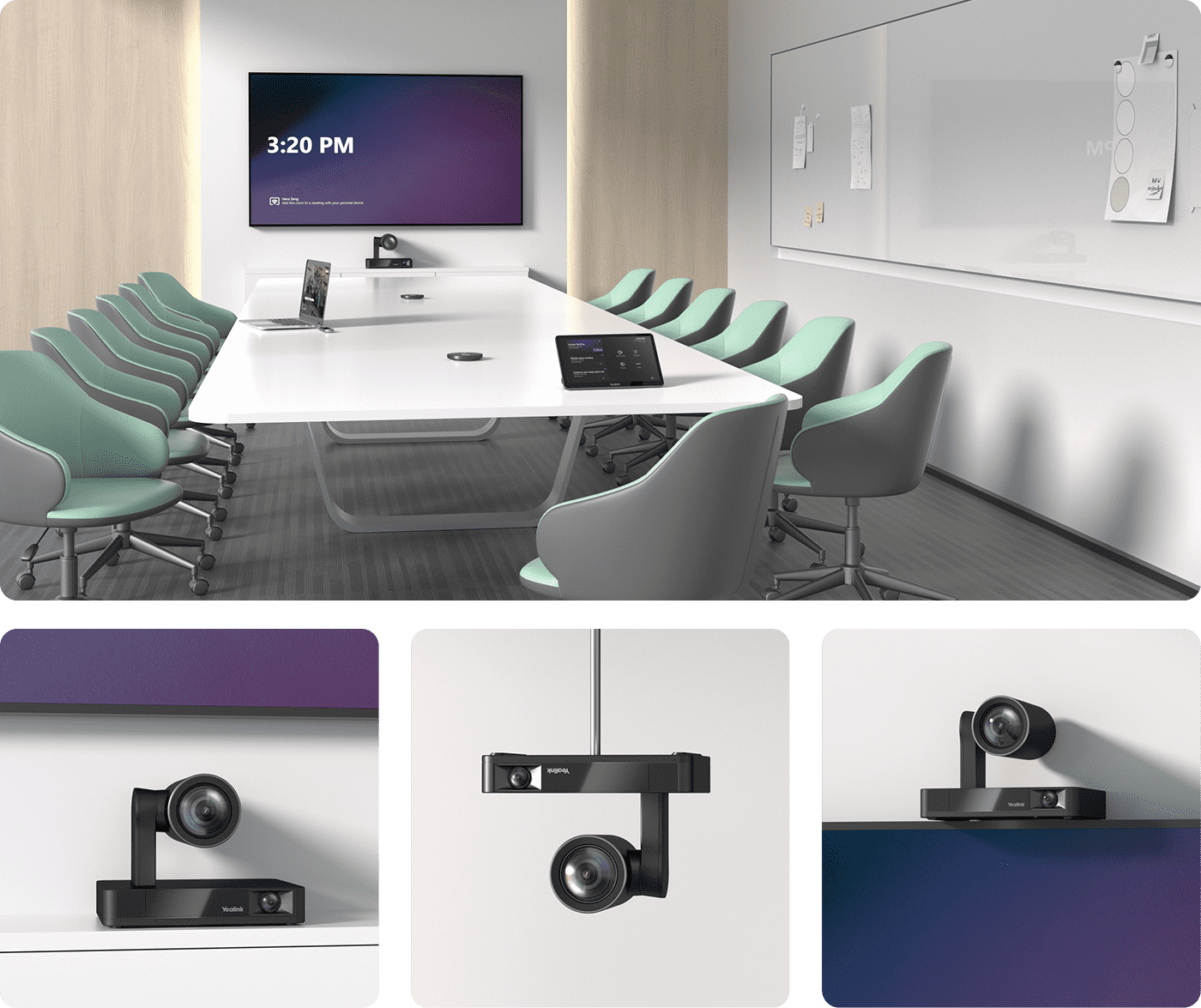

Features Auto Framing to automatically frame all participants, Speaker Tracking to follow the active presenter, and Presenter Tracking to move with the speaker. Offers flexible ceiling, TV mount, or wall mount options.
| Camera System | Camera Architecture | Dual-Eye 4K Camera: 1x 4K PTZ Camera + 1x 4K Panoramic Camera |
| PTZ Camera Optics | 4K Sensor, 12x Optical Zoom + 1.7x Digital Zoom (20.4x Total Zoom), 90° DFOV, 81° HFOV | |
| Panoramic Camera | 4K Sensor, 120° DFOV, 110° HFOV, 78° VFOV | |
| PTZ Range | Pan: ±100°, Tilt: +40° to -90°, 9 Camera Presets | |
| AI Intelligence Features | Auto Framing, Speaker Tracking, Presenter Tracking | |
| Interfaces & Physical | Physical Ports | 1x USB 3.0 Type-B, 1x USB 2.0 Type-A, 1x HDMI Output, 1x Yealink VCH Port (RJ-45), 1x 3.5mm Line-in, Power Port |
| Mounting Flexibility | Wall Mount (bracket included), TV Mount, Ceiling Mount (Inverted mode supported) | |
| Package Contents | UVC86 Camera, VCR20 Remote Control, Power Adapter, Wall Bracket and Accessories, 7m USB Cable |
