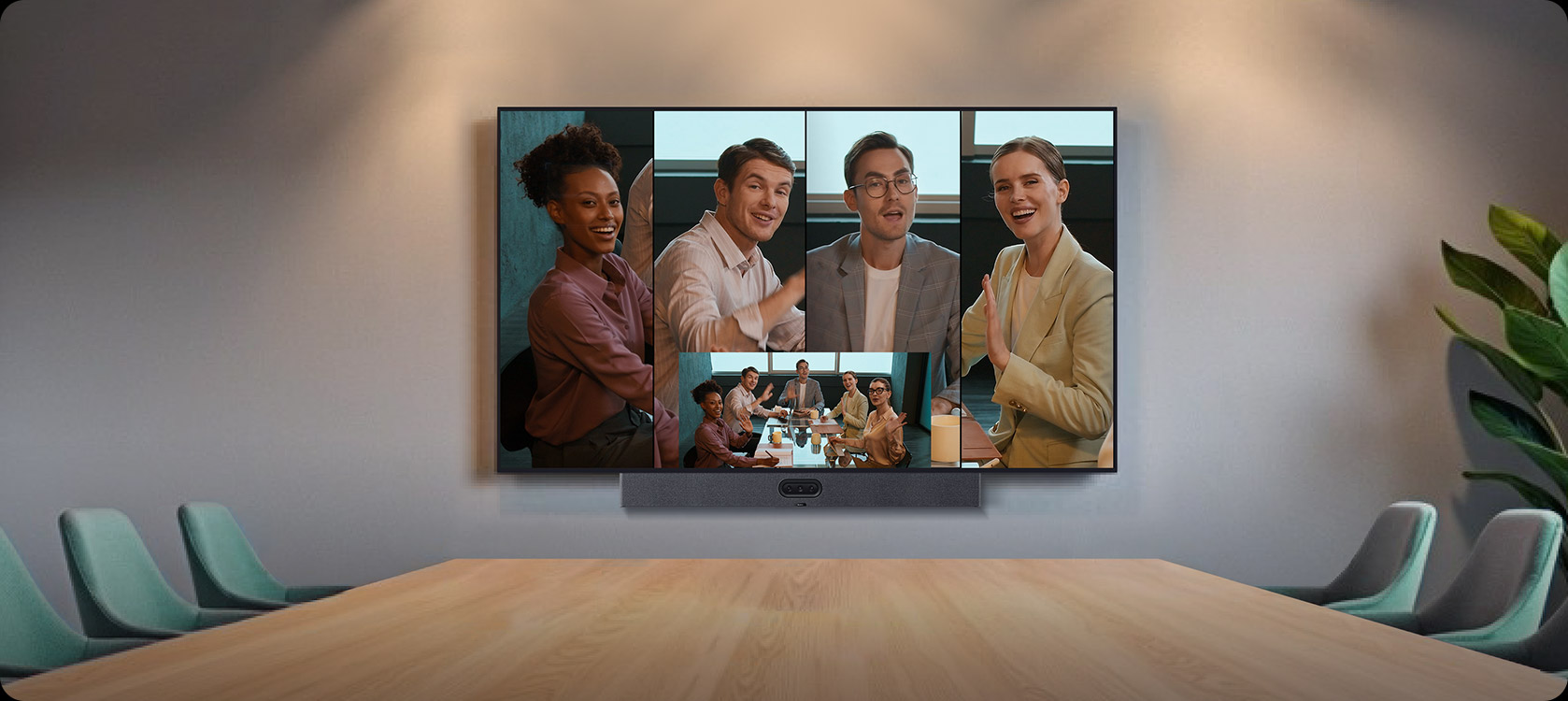

MeetingBar A50 Microsoft Teams Rooms on Android
MeetingBar A50
All-in-One Video Collaboration Bar for Medium to Large Rooms
Designed for Simplicity
Yealink MeetingBar A50 is an all-in-one video collaboration bar for premium medium-to-large rooms. This product delivers cutting-edge audio and video communication capabilities, powered by advanced AI technology, ensuring crystal-clear sound and ultra-HD visuals. With intelligent full-duplex, IntelliFocus, and video fence, it redefines the video conferencing experience, bringing unparalleled clarity and efficiency to every meeting.

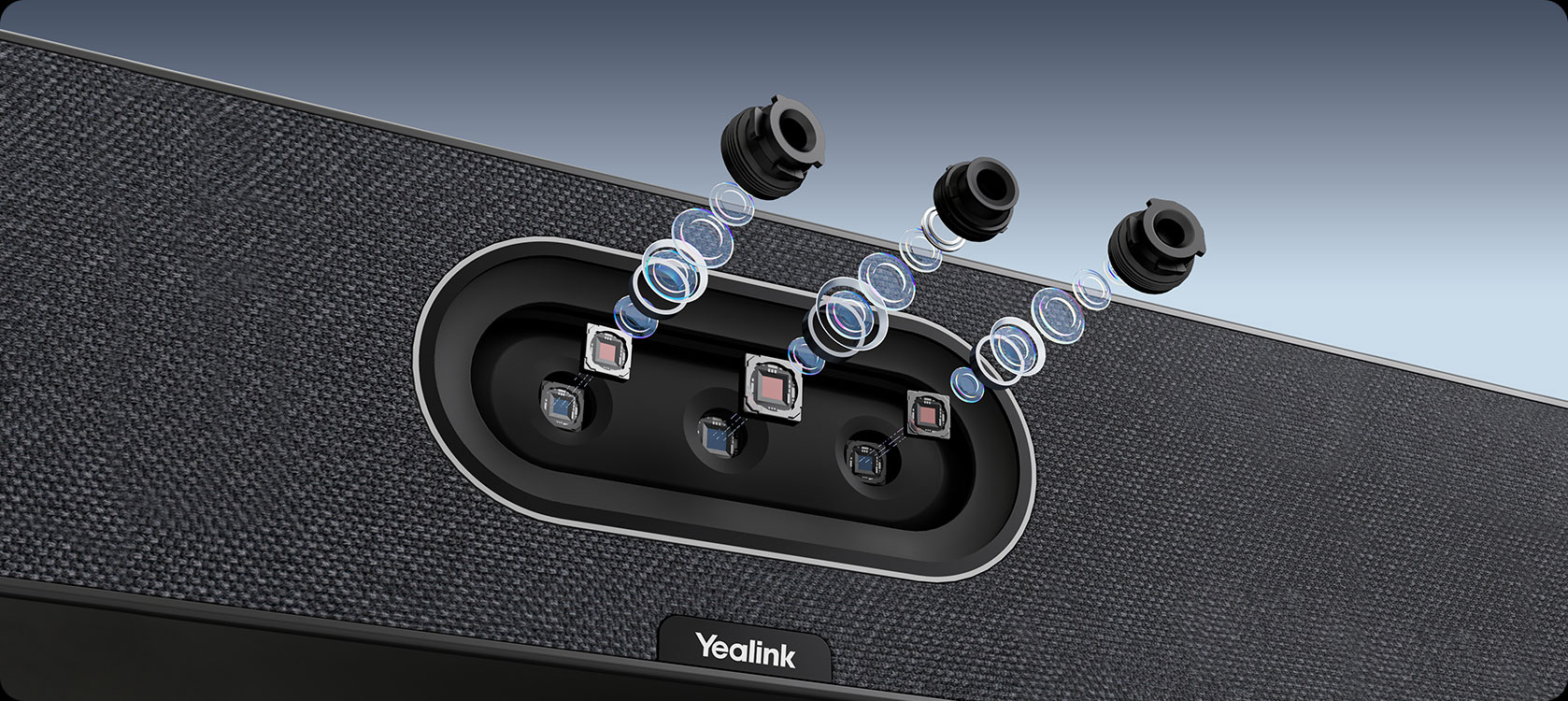

Three Cameras. See It All.
MeetingBar A50's triple 50MP camera system combines a wide-angle lens and two telephoto lenses to capture every voice, face, and detail—even in larger spaces. And when the meeting ends, a physical shutter closes automatically to protect your privacy.

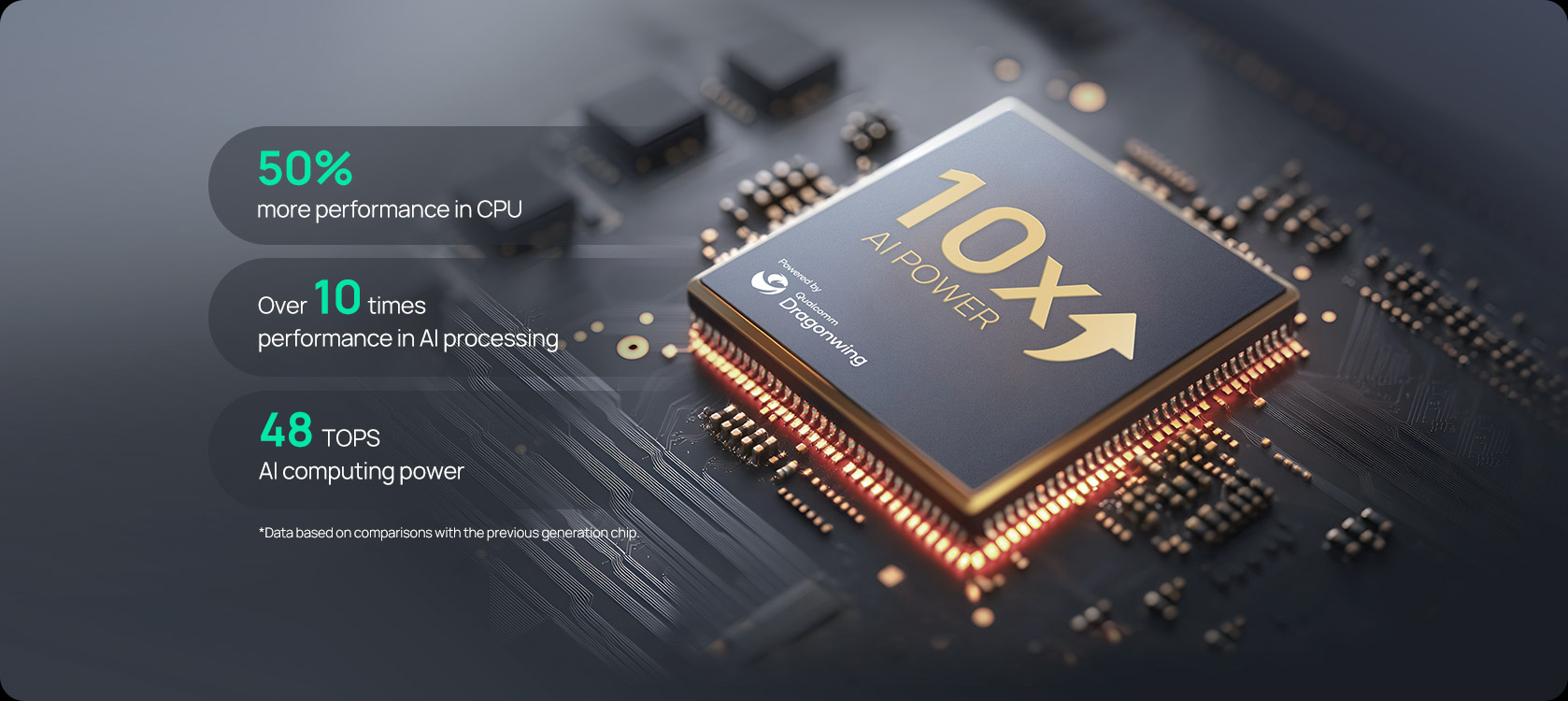

Engineered for Power
The MeetingBar A50 elevates video conferencing with Qualcomm's 8550 processor, delivering 50% more CPU performance and over 10 times the AI processing power. This innovation ensures seamless audio and video experiences in medium to large meeting rooms, enabling intelligent collaboration and crystal-clear communication.
On-Device IntelliFocus
The on-device IntelliFocus feature displays real-time close-up shots of the recent speakers, enabling you to stay focused on what truly matters. Feel free to make your points just as you would in a face-to-face conversation.
Video Fence
The Video Fence feature marks the boundaries of a virtual meeting space. Your colleagues only see and hear what's inside, keeping the focus solely on your point.

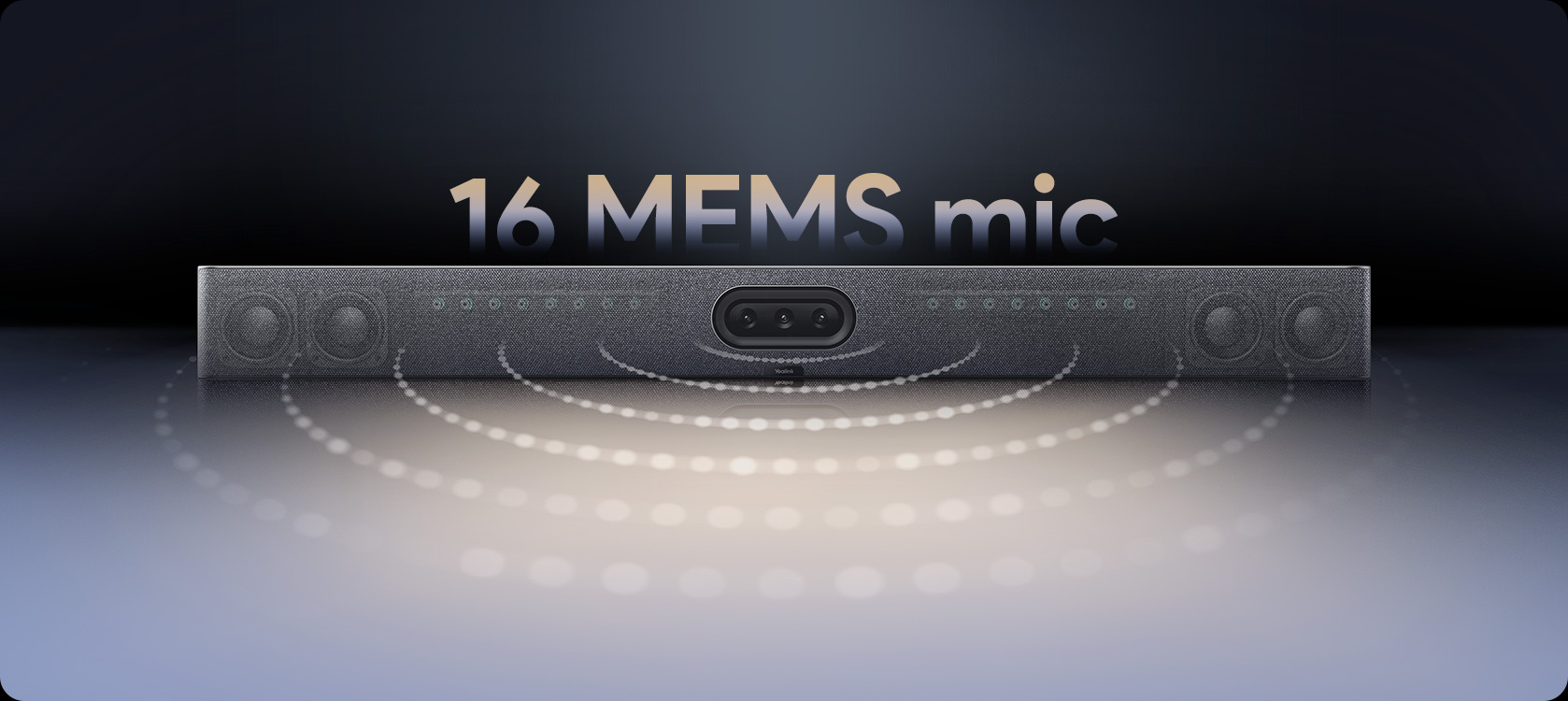

Voice Enhanced with AI-Powered Audio
The A50 delivers full-duplex audio powered by AI-enhanced noise cancellation and reverberation suppression, so voices come through naturally—without distractions. With a pickup range of up to 10 meters and support for extension mics and ceiling mics, it’s built to adapt to any room and every conversation.

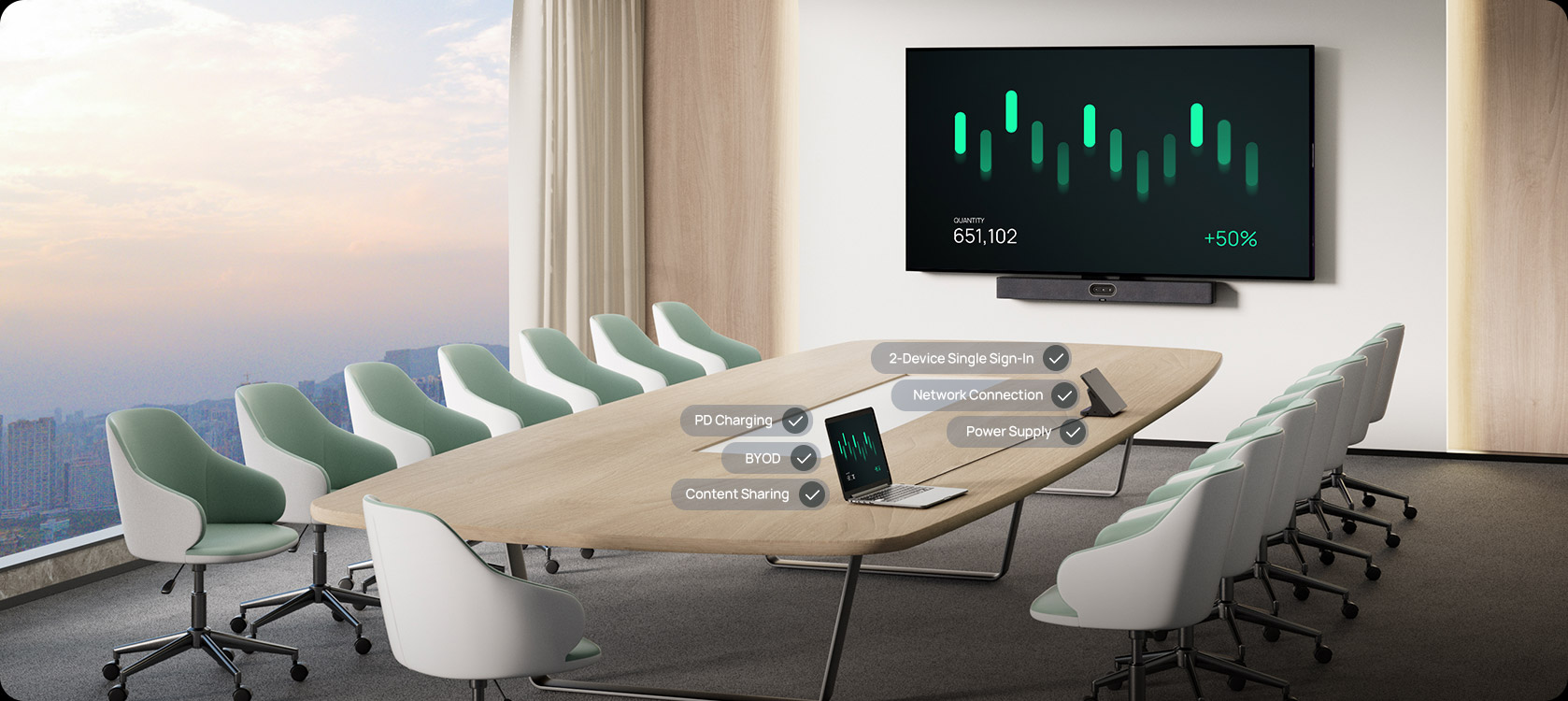

SIMPLIFY WITH ONE PLUG
MeetingBarA50's One-Cable Solution simplifies deployment and sharing in 2 ways. A single Cat5e cable from the bar to the touch console provides power and network connectivity to the touch console, eliminating extra cables. Signing in on the touch console synchronizes the entire system. Additionally, a single USB-C cable from the touch console to the PC enables 4K sharing, BYOD, and PD charging.
FLEXIBILITY MAXIMIZED

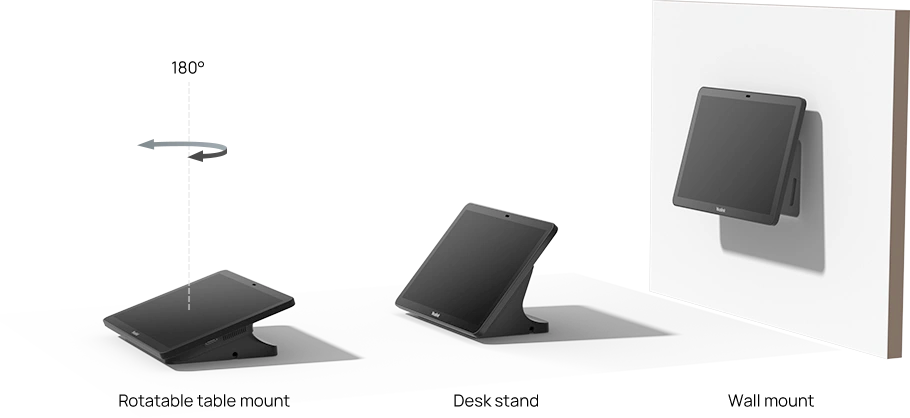

The touch console CTP25 can be mounted on the desk or wall, and it offers flexible connectivity options with direct connection to the bar or via IP.
ANDROID BASED, MEETINGS SECURED
MeetingBar A50, based on Android 13 , supports the Microsoft Device Ecosystem Platform (MDEP) , ensuring a future-proof and secure meeting experience that effectively combats malicious attacks and data leaks.

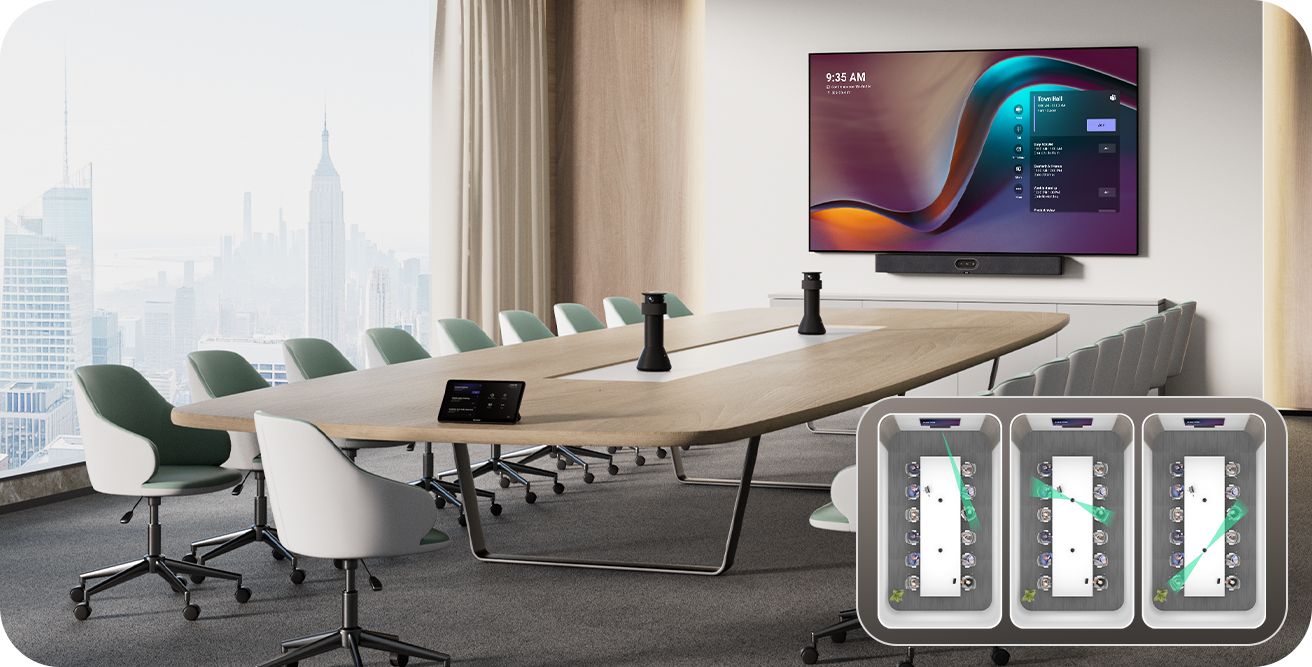

Dual MTower, Broader Perspectives
Compatible with A50, Dual MTower brings more natural front-facing view, AI-powered auto-switching, and extended audio and video coverage into larger meeting spaces.
Standard Room Layout Diagrams
The MeetingBar A50 is an all-in-one video collaboration bar for premium medium-to-large rooms, features triple 50MP camera system, 10m voice pickup, AI-enhanced audio and video, and multi-platform flexibility with BYOD support.

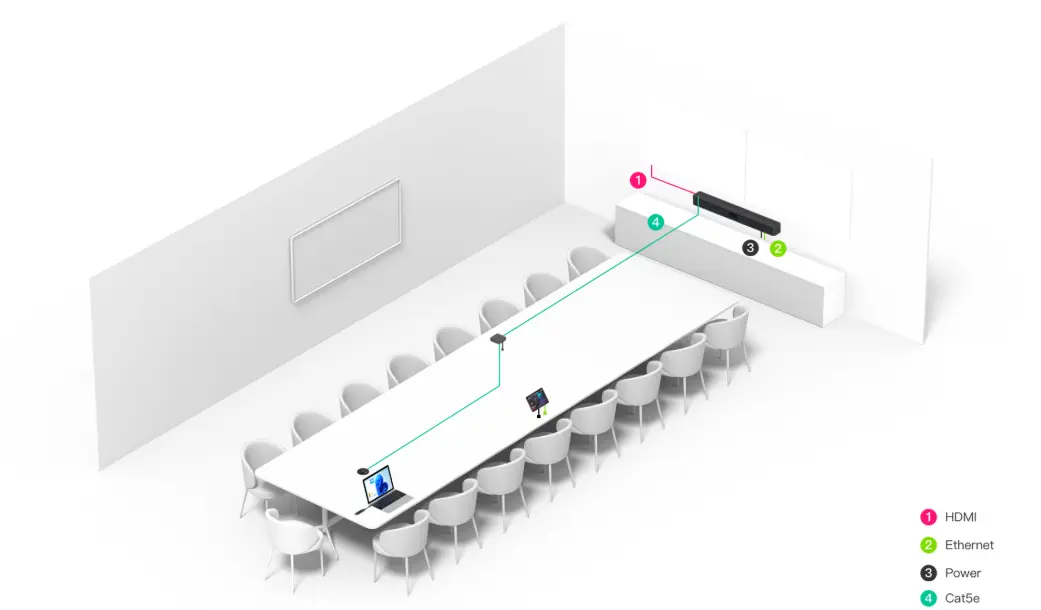

For Medium Meeting Room

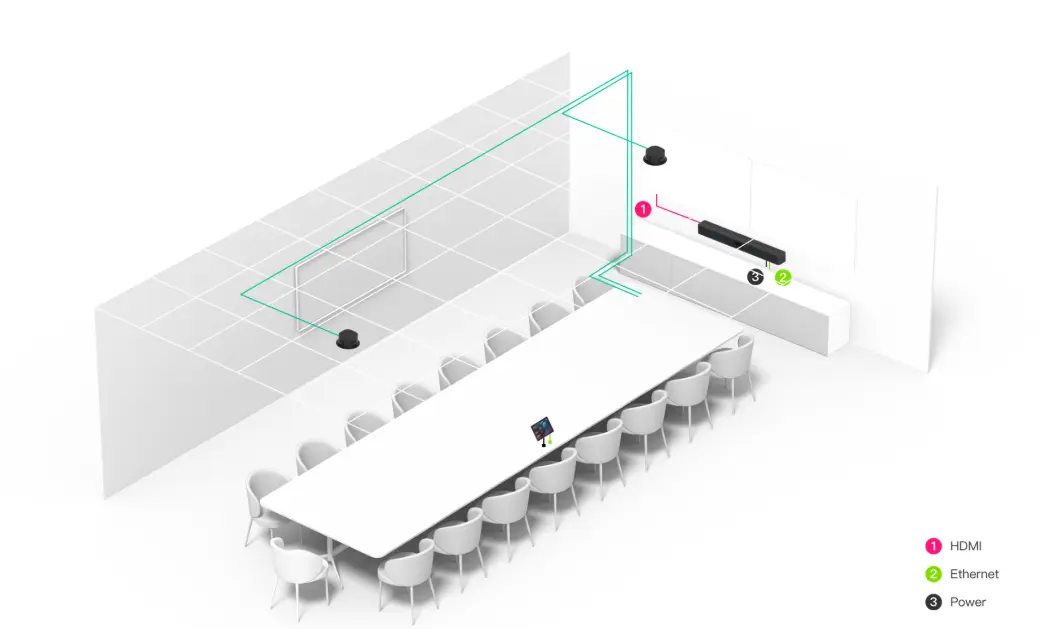

For Large Meeting Room with Ceiling Audio
MANAGEMENT OVER THE AIR
Master devices in bulk with professional management platforms such as Microsoft Teams Admin Center (TAC), MTR Portal Management Platform(PMP), Zoom Device Platform (ZDM) and Yealink Management Cloud Service (YMCS).
Hardware & Package Overview

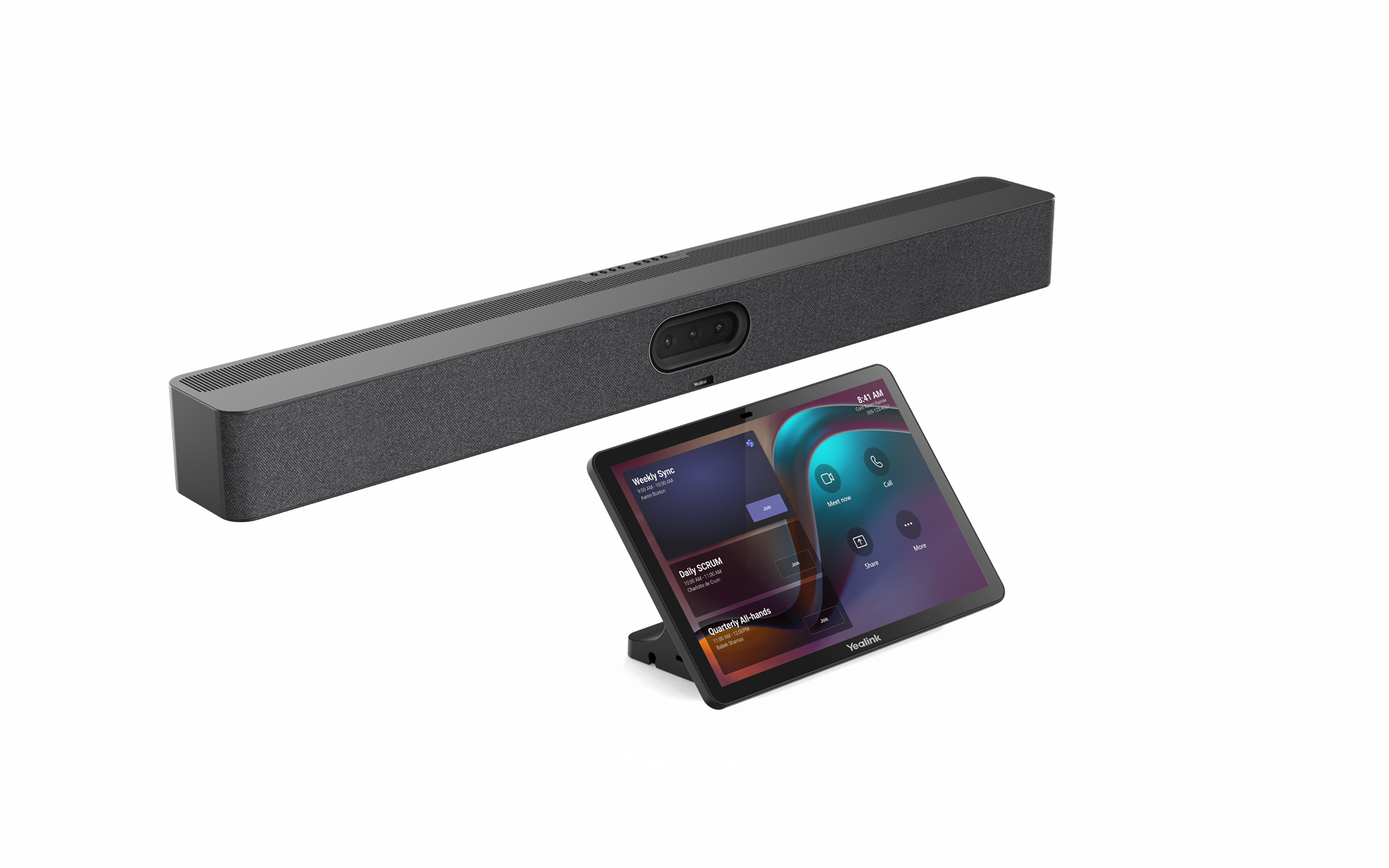

MeetingBar A50 with CTP25 Touch Console
MeetingBar A50 All-in-One Bar View
| Camera Specifications | Camera System | Triple-eye Camera System (3x 50MP) |
| Wide Camera | 1x Wide Camera: DFOV 110°, HFOV 98°, VFOV 81°, effective focal length 3.5mm | |
| Telephoto Cameras | 2x Tele Camera: DFOV 51°, HFOV 41.6°, VFOV 31.8°, effective focal length 8.29mm | |
| Resolution & Frame Rate | 4K (2160p) 30fps, 1080p 60fps; Maximum resolution: 3840*2160 | |
| Zoom & Depth of Field | 8x digital zoom; Depth of field: 0.7–8 meters | |
| Privacy Cover | Electric lens cap (automatic physical privacy shutter) | |
| Intelligent AI Features | IntelliFocus (4 portraits), Video Fence, Auto Framing, Speaker Tracking, People Counting, Picture in Picture, Smart Gallery (Zoom only) | |
| Audio Specifications | Microphone Array | Built-in 16 MEMS beamforming microphone array |
| Voice Pickup Range | 10-meter pickup distance | |
| Extension Microphones | Supports extended mic and ceiling mic (VCM35, VCM38, CM20) | |
| Speakers | Built-in 4 stereo speakers (4 x 5W speakers) | |
| Audio Technologies | AI Audio 2.0, AI-enhanced noise cancellation, Audio Fence, Reverberation suppression, Full-duplex audio, Acoustic Echo Cancellation (AEC) | |
| System & Processing | Processor & NPU | Qualcomm Snapdragon 8550 processor, 48 TOPS AI computing power |
| Operating System | Android 13 | |
| Platform Ecosystem & Security | Microsoft Device Ecosystem Platform (MDEP) compatible, Secure Boot, Hardware Attestation, Microsoft PKI, Secure Pairing | |
| Operating Modes | Native Microsoft Teams Rooms on Android & Wired Device Mode (BYOD USB mode) | |
| Physical Interfaces & Connectivity | Video Output | 2x HDMI Out (supports Dual-Monitor Mode and CEC) |
| Touch Console Interface | 1x Cat5e port (One-Cable Solution to CTP25 touch console for power and network sync) | |
| Content Sharing & BYOD | 1x USB-C (enables 4K sharing, BYOD mode, and PD charging) | |
| USB & Network | USB Type-A, Gigabit Ethernet | |
| Wireless Connectivity | Dual-band Wi-Fi & Bluetooth | |
| Management & Deployment | Device Management Platforms | Microsoft Teams Admin Center (TAC), MTR Pro Management Portal (PMP), Zoom Device Management (ZDM), Yealink Management Cloud Service (YMCS) |
| Recommended Room Size | 7–15 people (Medium to Large Meeting Room) | |
| Mounting & Deployment Options | Wall mount, TV mount bracket, rotatable table mount / desk stand / wall mount for CTP25 |
