Yealink VC200 VC Room System
- Overview
- Specifications

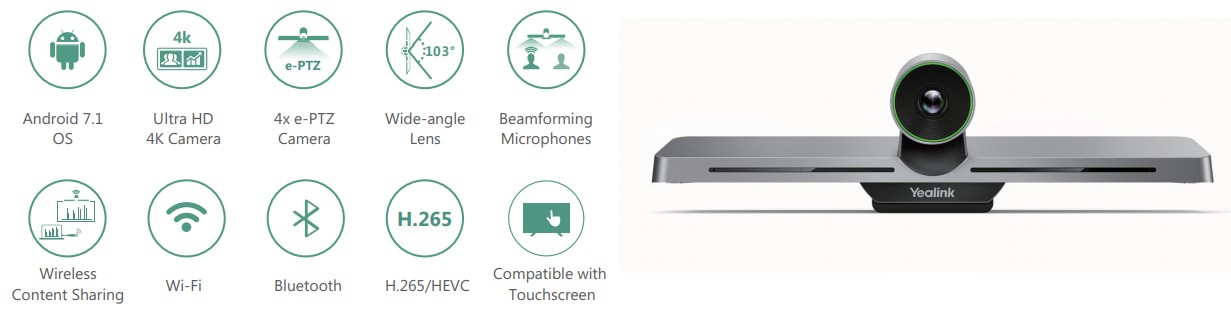

Smart Video Conferencing Endpoint for Small and Huddle Room
Based on Android 7.1 operating system, the Yealink VC200 is an entry-level smart video conferencing endpoint designed for small and huddle room. Its UltraHD 4K camera and 103° super-wide-angle lens deliver outstanding video quality and additional boost face-to-face collaboration. With 6 beamforming microphone arrays for direct voice pickup and Yealink Noise Proof Technology, VC200 brings excellent sound in small rooms and ensures that everyone can be heard as well as seen. For its compact six-in-one design, VC200 integrates a built-in camera, codec, microphone, Bluetooth, Wi-Fi and bracket, which provides you a turnkey solution that can be easily and consistently deployed with only two cables. The Yealink VC200 is an ideal communications choice to help ensure your teams can concentrate fully on effective collaboration.

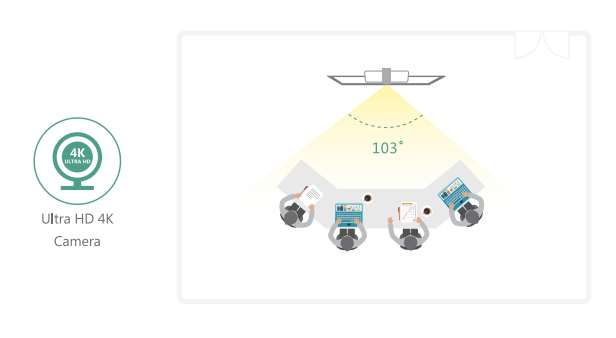

Ultra HD 4K Camera and Super—wide Angle Lens
- The Ultra HD 4K camera supports 4x digital zoom and e-PTZ, with super-wide 103° horizontal field of view, covering every seat at the table.
- 1080P full HD video conferencing and H.265/H EVC codecs, resisting up to 30% video loss.

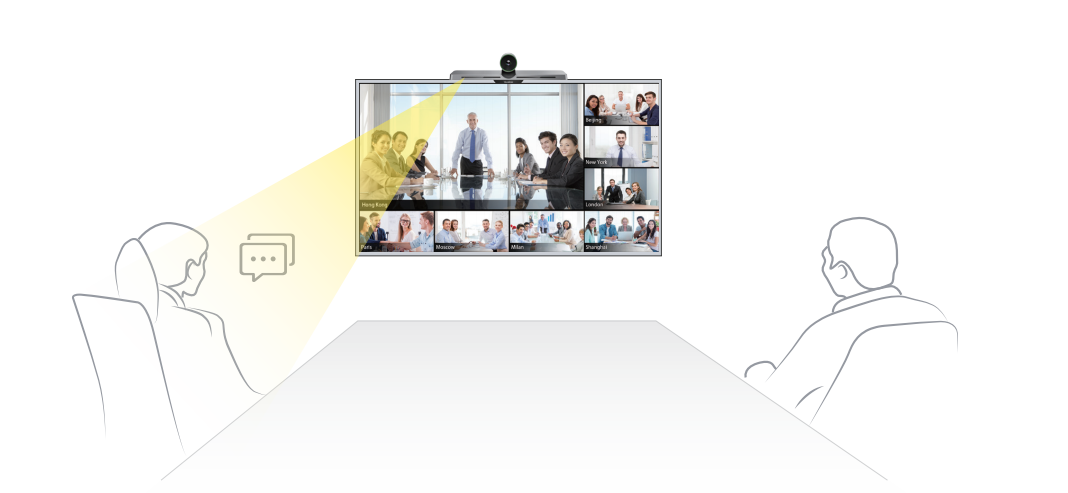

Clearer Voice with 6 Beamforming Microphone Arrays
- With the most advanced Beamforming technology, VC200’s 6 built-in microphone arrays support directed voice pickup, ensuring a clearer voice by automatically identifying and comparing voice.
- Automatically filtering unrelated noise, thanks to Yealink’s Smart Noise Proof technology, video conferencing can be more concentrated.

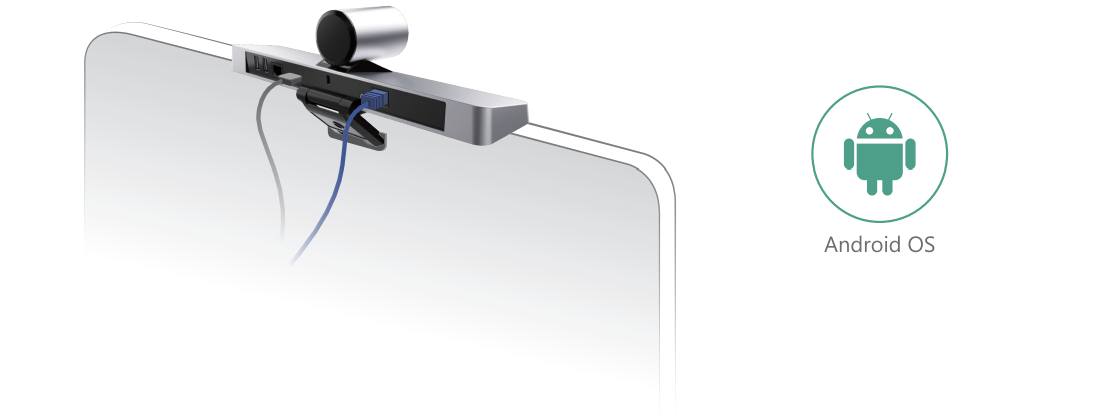

Compact Design, 1 Minute Deployment
- With all-in-one design by integrating codec, camera, microphone and bracket, VC200 can easily fit TV ranging from 6mm to 50mm thick.
- VC200 supports PoE supply; Connect network and HDMI cables and you are ready for a video conference.
- Based on Android OS and TV-styled interactive user interface, VC200 provides all functions with one-touch operation. What you see is what you get, with no training cost.

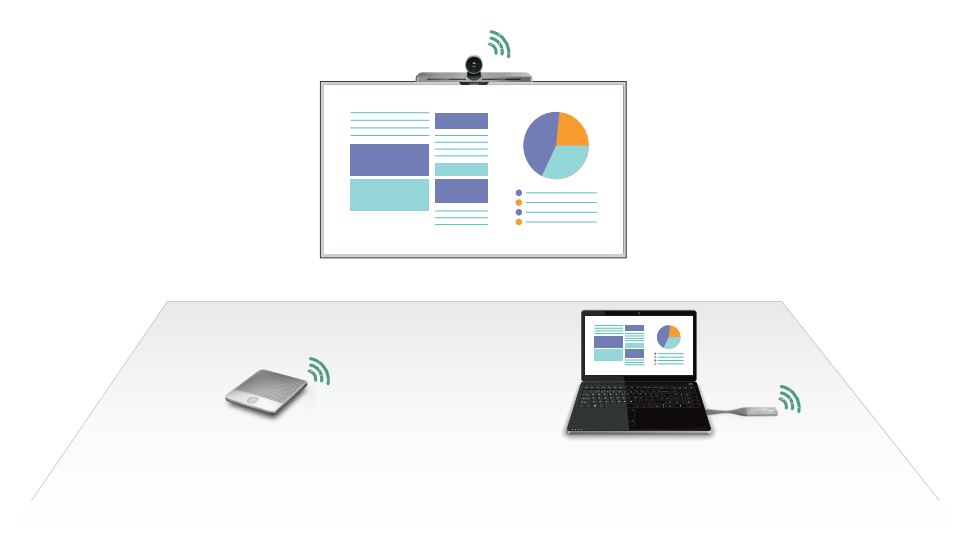

Wireless Application, CIutter-free Meeting Room
- Easily connect the VC200 through Bluetooth or Wi-Fi, you can utilize wireless application including one-click wireless content sharing. No installation nor messy cables, VC200 greatly saves your effort of deployment.
- With optional wireless microphones, VC200 can extend the range of sound pickup.
Camera Features | Pixel | 8 Million Pixels |
Zoom | 4X digital | |
Frame rate | 30 FPS | |
Horizontal field of view | 103° | |
Video Features | Video call quality | up to 1080p30fps |
Bandwidth requirement | 1080P from 512kbps in H.265 | |
Video packet Loss recovery | 30% | |
Local HD recording | √ (USB flash drive or local storage) | |
Microphone | Microphone | 6 built-in beamforming microphone array |
Voice pickup distance | 16ft / 5 meters | |
Wireless microphones | Optional | |
Noise proof technology | √ | |
Collaboration Touch Panel | Collaboration Touch Panel | Optional |
Collaboration Features | Whiteboard | √ |
Annotation on content sharing | √ | |
Multi-screen interaction | √ | |
Reverse control | √* | |
Network & Security | Wi-Fi | 2.4GHz/5GHz Dual Mode |
Bluetooth | Bluetooth 4.2 | |
TCP/IP | IPv4 & IPv6 | |
Communication protocols | H.323 / SIP | |
Traversal features | ICE/TURN/STUN/NAT/H.460 | |
Encryption | SRTP/TLS/H.235/AES 256-bit | |
Physical Connections |
Video output | 1 x HDMI |
Video input for content | Optional WPP20 or VCH50 | |
Line-in | × | |
Line-out | 3.5mm | |
USB interface | 2 x USB 2.0 | |
Network interface | 1 x 10/100 Ethernet | |
Video Codec | H.265, H.264 High Profile, H.264, H.263, H.263+ | |
Audio Codec | ARES, Opus (8-48kHz), G.722.1C, G.722.1, G.722, G.711 (PCMU/PCMA), G.729 | |
Video Resolution | 1080P, 720P, 540P, 360P, 4CIF, CIF | |
*Reverse control needs to be used with WPP20 |
