Yeastar TA Series FXS VoIP Gateway
Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
Fully compliant with SIP and IAX2, also features flexible calling rules.
Yeastar TA FXS VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into any IP-based system, including the Yeastar S-series.
Benefits
Feature-rich
Easy
Reliable
Stable with advanced hardware
and software architecture
and software architecture
Interoperability
Interoperable with a broad list
of Softswitch, PBX, and IP-PBX
like Elastix and Lync Server
of Softswitch, PBX, and IP-PBX
like Elastix and Lync Server
Key Features
- 3-way Conference
- Attack Alert
- Auto Provisioning with Yeastar IP-PBX
- Blind Transfer
- Caller ID Display
- Call Waiting
- Firewall
- Hotline
- IP Blacklist
- Nat Traversal
- Radius Accounting & Login
- Speed Dial
- TR-069
- Web-based Management
- API
- Attended Transfer
- Backup and Restore
- Call Detail Records
- Call Forward (Always, Busy, No Answer)
- Do Not Disturb
- Firmware Upgrade by HTTP/TFTP
- Hunting Groups
- MWI (FSK, Neon, Polarity Reversal)
- Packet Capture Tool
- SNMP
- System Logs
- Voice Menu for Basic Configuration
- Remote Management
Specifications

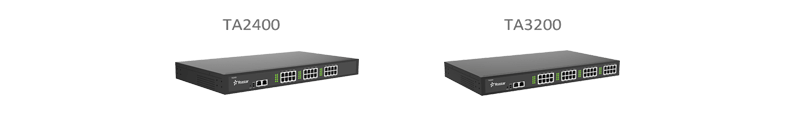

| Models | TA400 | TA800 | TA1600 | TA2400 | TA3200 |
| RJ11 FXS Ports | 4 | 8 | 16 | 24 | 32 |
| RJ 21 Ports | 一 | 一 | 1 | 1 | 2 |
| LAN | 1 10/100Mbps | ||||
| WAN | 一 | 1 10/100Mbps | |||
| Protocol | SIP (RFC3261), IAX2 | ||||
| Transport | UDP, TCP, TLS, SRTP | ||||
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | ||||
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC | ||||
| DTMF Mode | RFC2833, SIP Info, In-band | ||||
| Fax | T.38 and Pass-through | ||||
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | ||||
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | ||||
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | ||||
| Management Protocol | RADIUS, TR-069 | SNMP, RADIUS, TR-069 | |||
| Remote Management | N/A | Yes | |||
| Signalling | FXS Loop Start, FXS Kewl Start | ||||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | ||||
| Disconnect Methods | Busy Tone, Polarity Reversal | ||||
| Power | 12V, 1A | AC 100-240V (12V 5A) | |||
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | 440 × 250 × 44 | |||
| Operation Range | 0°C to 40°C, 32°F to 104°F; | ||||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||||
| Humidity | 10-90% non-condensing | ||||
| Mounting | Desktop, Wall-mount | Desktop, Rack-mount | |||
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft | ||||
