Yeastar TG Series VoIP GSM Gateways
GSM Voice Calls
VoLTE for HD Calls
Maximum Cost Reduction
Top Quality and Reliability
Mobile Connectivity for SMB
Yeastar TG Series VoIP GSM Gateways connect GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and Softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.
Key Features
- 1 Stage/2 Stage Dial
- Call Back
- Call Duration Limitation
- Call Status Display
- Carrier Selection: Auto/Manual
- Firmware upgrade by HTTP/TFTP
- GSM/CDMA/UMTS Ports Group Manage
- Incoming /Outgoing Routing rules
- Network Attack Alert
- Open API for SMS and USSD
- PIN Modify
- Send Bulk SMS
- SIP Peer Mode: Support
- SIP server for IP phones: Support
- SMS Center
- System Logs
- VoIP Trunk Group
- Black List
- Balance Alarm
- Call Detail Record (CDR)
- Call Progress Tone Generation
- Call Transfer
- Caller ID/CLIR
- Configure backup/restore
- Gain Adjustment
- Hotline
- IP Blacklist
- NTP
- Packet Capture
- Real Open API Protocol (Based on Asterisk)
- Session Timer
- SIP Response Code Switch
- SIP Trunk: Support
- SMS Sending and Receiving
- USSD
- Web-based configuration
Benefits
Bulk SMS Service
Interoperability
Easy to use
Mobile Trunkings
Specifications

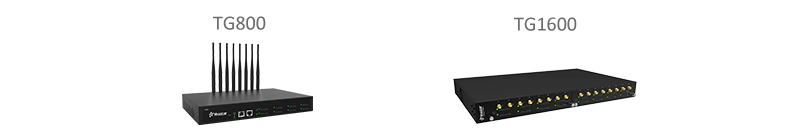

| Models | TG100 | TG200 | TG400 | TG800 | TG1600 |
| Number of Ports | 1 | 2 | 4 | 8 | 16 |
| GSM Frequency | 850/900/1800/1900 MHz | ||||
| WCDMA Frequency | 850/1900 MHz, 850/2100 MHz, 900/2100 MHz | ||||
| 4G Data | – | ||||
| 4G LTE Band | Don’t support 4G LTE | Depending on the module type. The supported band and operators can be found here. | |||
| Protocol | SIP, IAX2 | ||||
| Antenna Splitter (4 in 1) | – | Support | |||
| Transport | UDP, TCP, TLS, SRTP | ||||
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex | ||||
| DTMF Mode | RFC2833, SIP Info, In-band | ||||
| Echo Cancellation | ITU-T G.168 LEC | ||||
| Calling Type | Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) | ||||
| Console Port | – | 1 | |||
| Network Protocol | FTP, TFTP, HTTP, SSH | ||||
| LAN | 1 10/100 Mbps Ethernet Interface | 2 10/100 Mbps Ethernet Interfaces | |||
| NAT Traversal | Static NAT, STUN | ||||
| Network | DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN | ||||
| Operation Range | 0°C to 40°C, 32°F to 104°F | ||||
| Power Supply | DC 12V, 1A | AC 100-240V | |||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||||
| Dimensions (L × W × H) (mm) | 110 x 70 x 24 | 213 x 160 x 44 | 340 x 210 x 44 | 440 x 250 x 44 | |
| Humidity | 10-90% non-condensing | ||||
